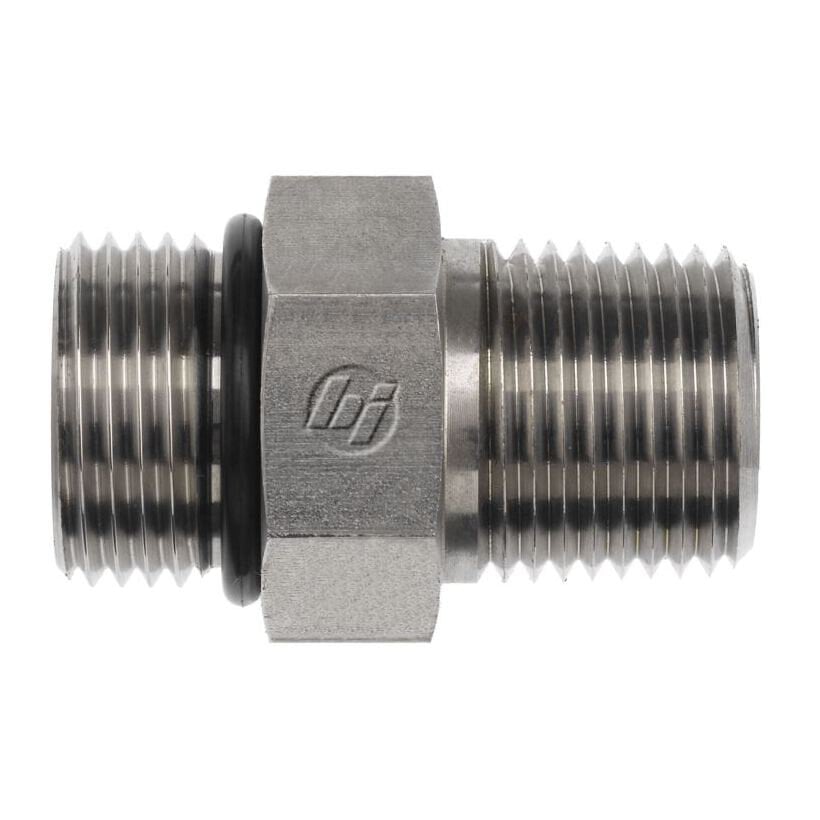

6401-08-12-O (08MORB-12MP Straight)
6401-08-12-O (08MORB-12MP Straight)
Regular price
$8.27 USD
Regular price
Sale price
$8.27 USD
Unit price
per
Couldn't load pickup availability

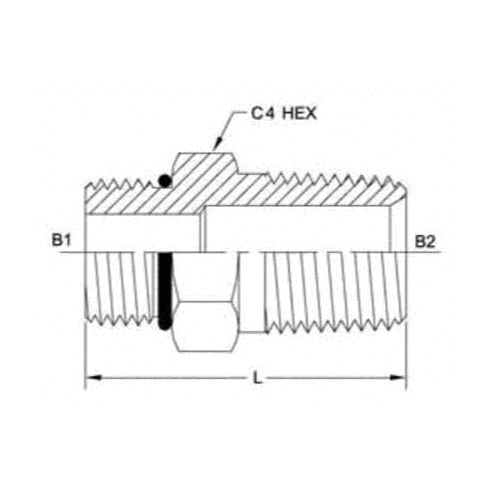

| THREAD B1 TYPE | MALE SAE O-RING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.062 |
| OVERALL LENGTH L | 1.76 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.206 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,500 |
