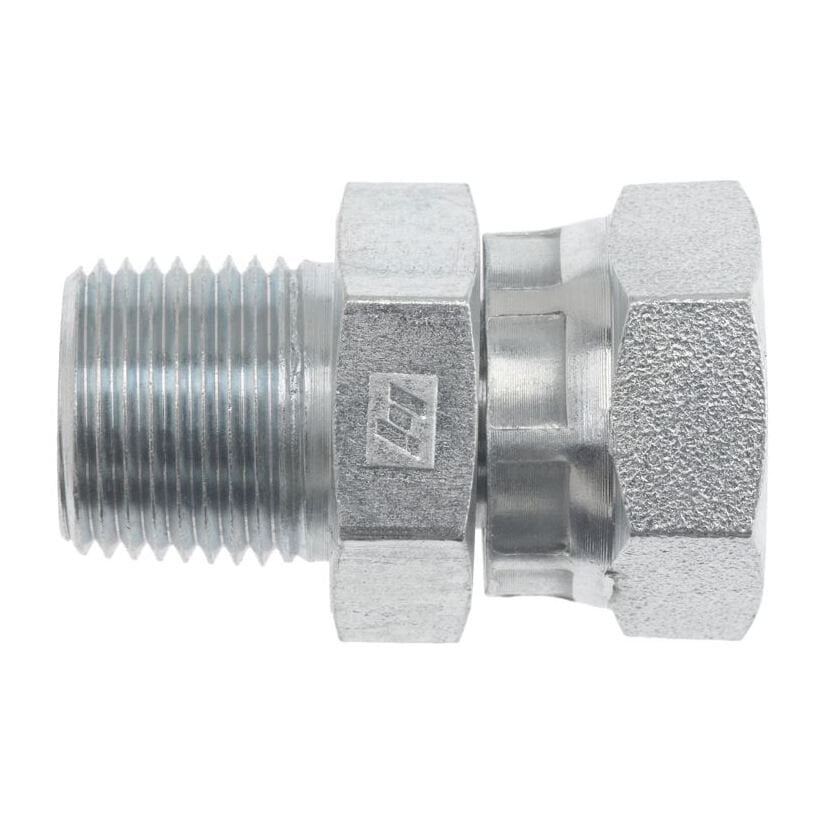

1404-08-04 (08MP-04FPS Straight)

1404-08-04 (08MP-04FPS Straight)

Regular price $5.99 USD
Regular price Sale price $5.99 USD
Sale Sold out
THREAD A1 TYPE MALE NPTF
THREAD A1 SIZE 1/2-14
THREAD A1 DRILL 0.531
THREAD A1 SPECIFICATION SAE J476
THREAD A2 TYPE FEMALE NPSM SWIVEL
THREAD A2 SIZE 1/4-18
THREAD A2 DRILL 0.21
THREAD A2 SPECIFICATION SAE J514

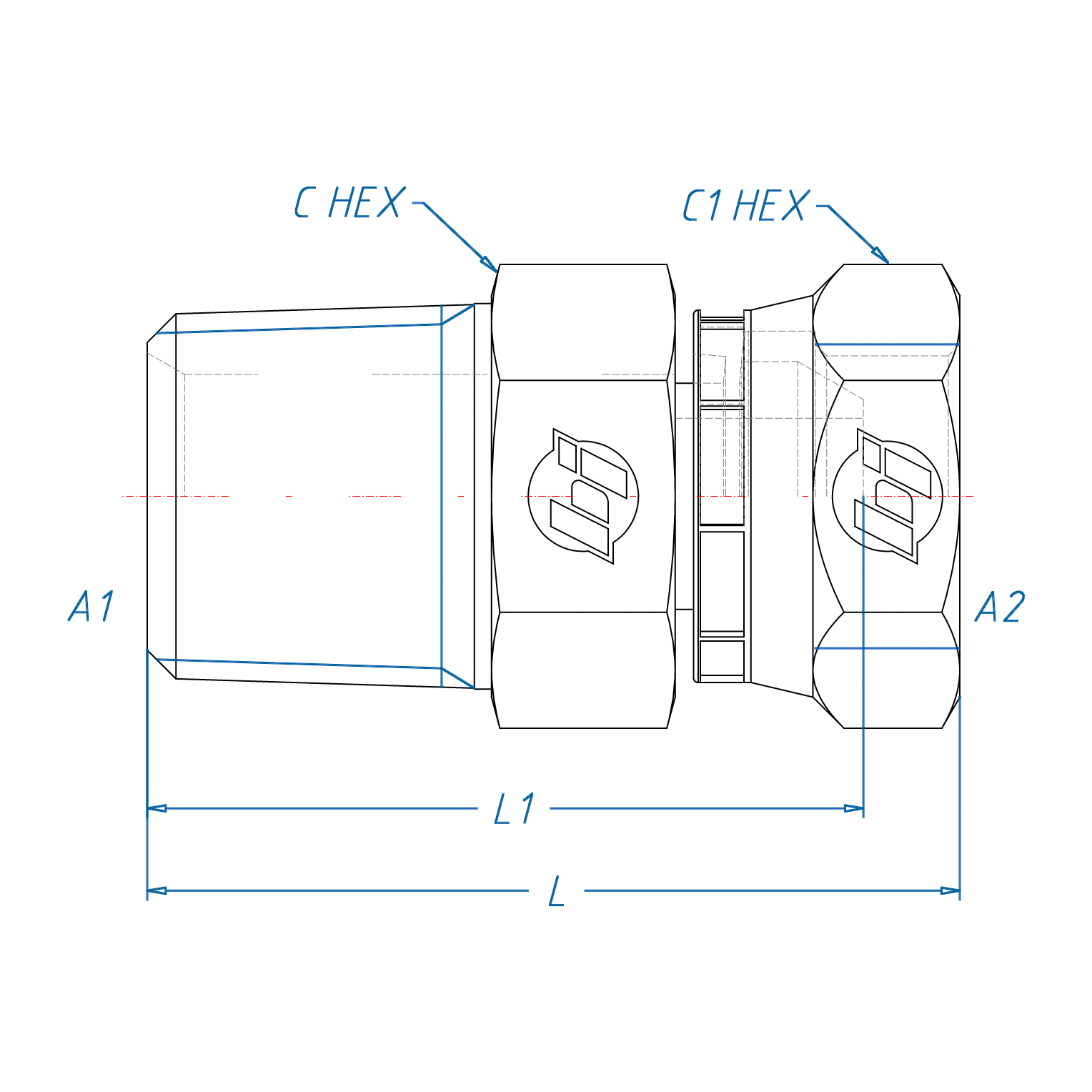

BODY HEX 0.875
C HEX 1 0.688
OVERALL LENGTH L 1.71
OVERALL LENGTH L1 1.52
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.213
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
