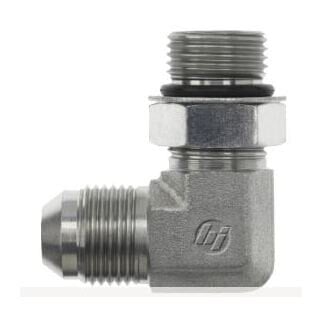

6801-10-08-NWO-FG (10MJ-08MAORB 90° Elbow Forged)
6801-10-08-NWO-FG (10MJ-08MAORB 90° Elbow Forged)
Regular price
$4.92 USD
Regular price
Sale price
$4.92 USD
Unit price
per
Couldn't load pickup availability

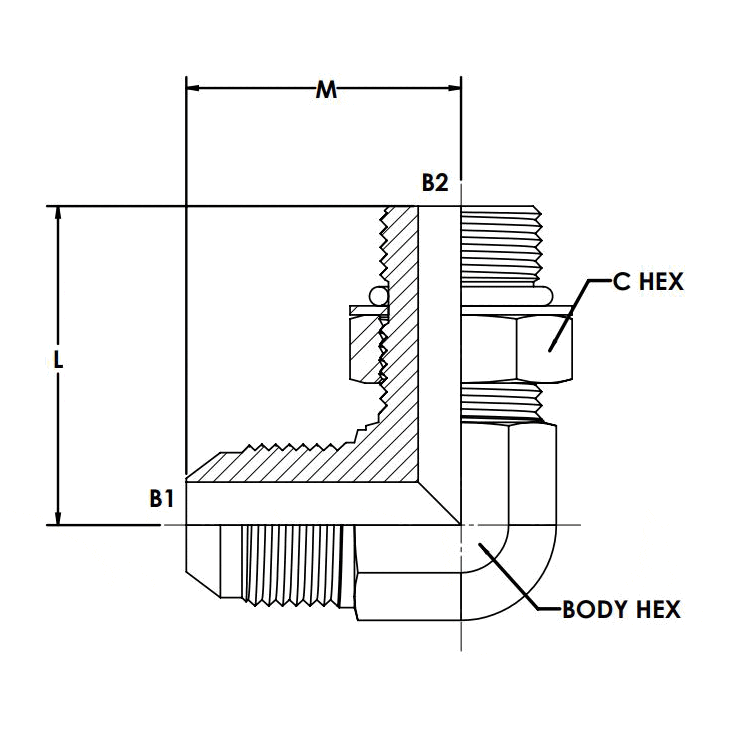

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX | 0.875 |
| C HEX 1 | 0.875 |
| CENTERLINE LENGTH M | 1.45 |
| CENTERLINE LENGTH L | 1.54 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.332 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
