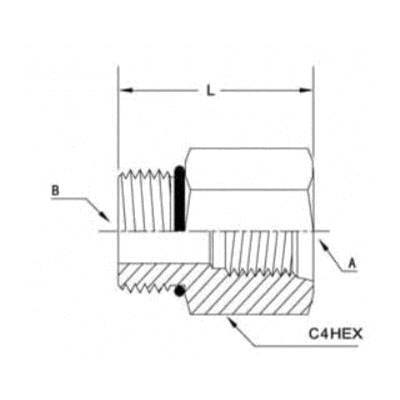

6410-10-08-O (10MORB-08FORB Straight)
6410-10-08-O (10MORB-08FORB Straight)
Regular price
$2.94 USD
Regular price
Sale price
$2.94 USD
Unit price
per
THREAD B1 TYPE | MALE SAE O-RING BOSS |
THREAD B1 SIZE | 7/8-14 |
THREAD B1 DRILL | 0.484 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD A2 TYPE | FEMALE SAE O-RING BOSS |
THREAD A2 SIZE | 3/4-16 |
THREAD A2 SPECIFICATION | SAE J514 |
BODY HEX | 1.000 |
OVERALL LENGTH L | 1.32 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
O-RING / SEAL MATERIAL | NBR |
WEIGHT (LBS) | 0.147 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
