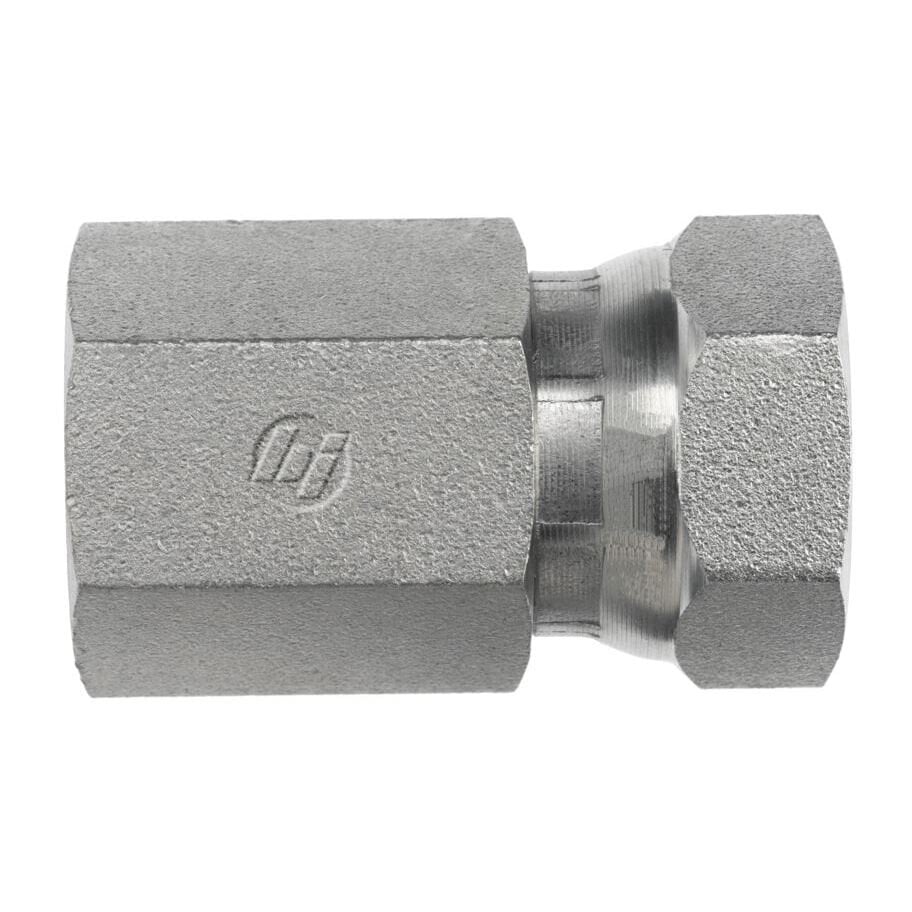

1405-12-08 (12FP-08FPS Straight)
1405-12-08 (12FP-08FPS Straight)
Regular price
$6.85 USD
Regular price
Sale price
$6.85 USD
Unit price
per
Couldn't load pickup availability

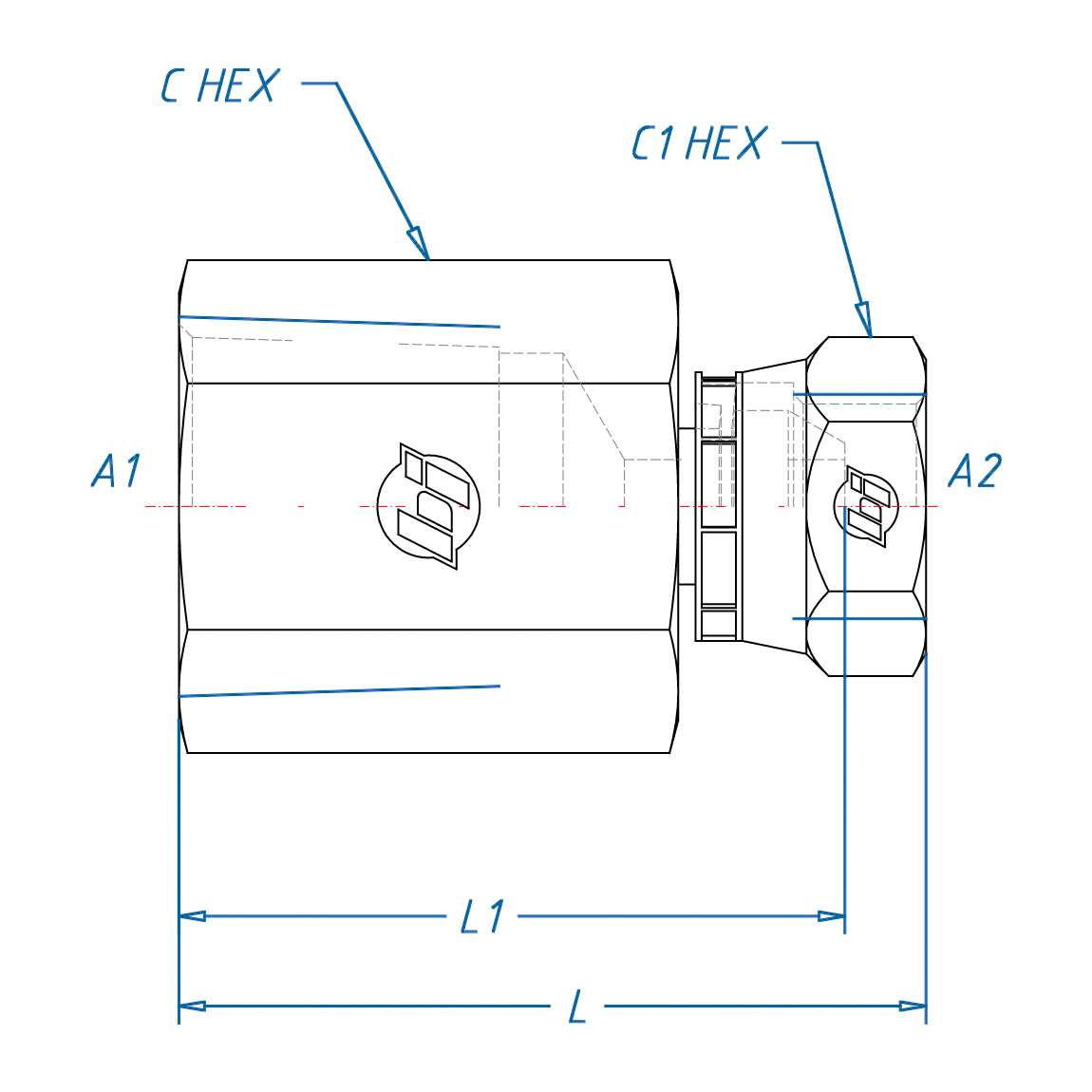

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 3/4-14 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1/2-14 |
| THREAD A2 DRILL | 0.460 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.250 |
| C HEX 1 | 1.000 |
| OVERALL LENGTH L | 1.91 |
| OVERALL LENGTH L1 | 1.63 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.300 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
