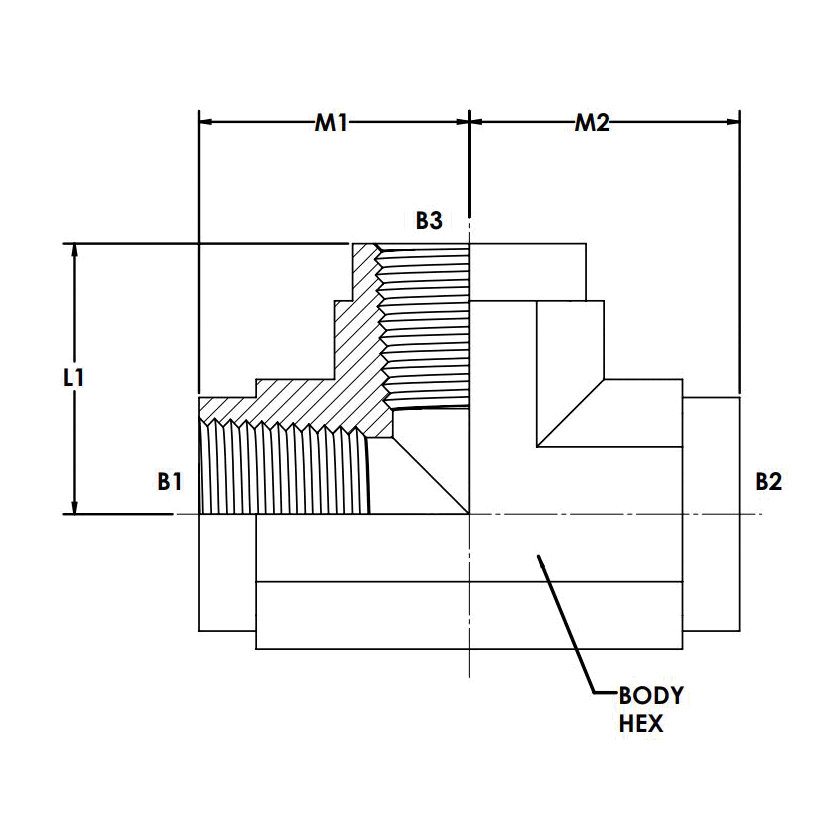

5605-12-12-12-FG (12FP-12FP-12FP Tee Forged)
5605-12-12-12-FG (12FP-12FP-12FP Tee Forged)
Regular price
$11.28 USD
Regular price
Sale price
$11.28 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD B3 TYPE | FEMALE NPTF |
| THREAD B3 SIZE | 3/4-14 |
| THREAD B3 SPECIFICATION | SAE J476 |
| BODY HEX | 1.312 |
| CENTERLINE LENGTH M1 | 1.36 |
| CENTERLINE LENGTH M2 | 1.36 |
| CENTERLINE LENGTH L1 | 1.36 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.682 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
