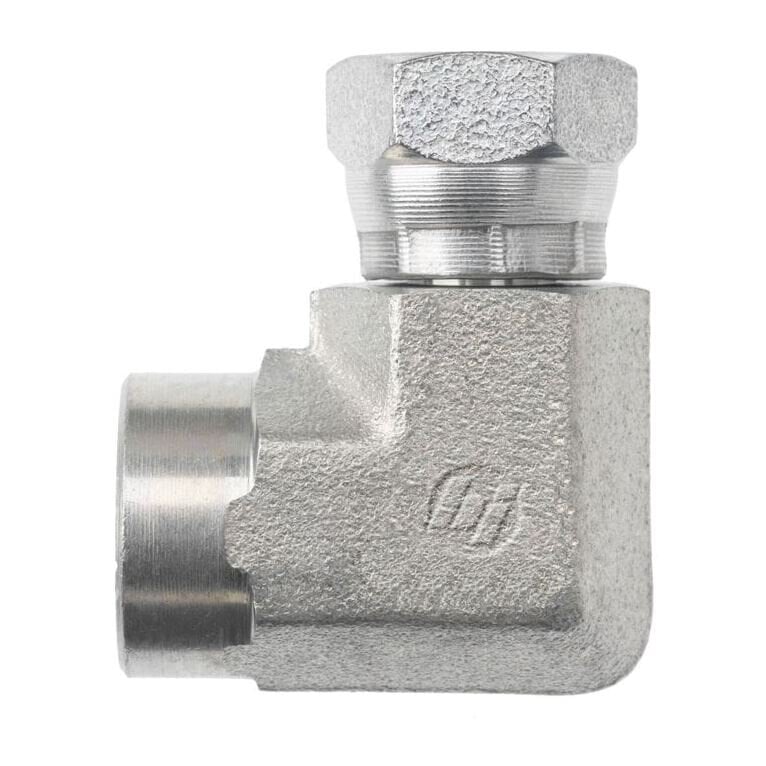

1502-12-12 (12FP-12FPS 90° Elbow Forged)
1502-12-12 (12FP-12FPS 90° Elbow Forged)
Regular price
$10.25 USD
Regular price
Sale price
$10.25 USD
Unit price
per
Couldn't load pickup availability

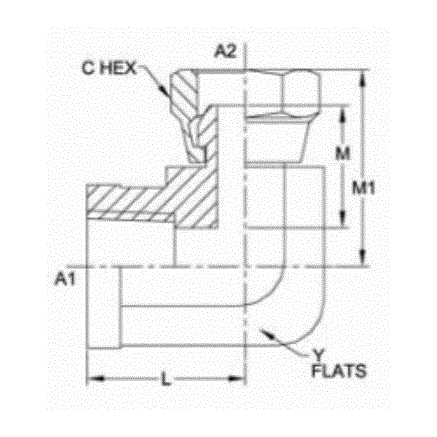

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 3/4-14 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 3/4-14 |
| THREAD A2 DRILL | 0.610 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.312 |
| C HEX 1 | 1.250 |
| CENTERLINE LENGTH L | 1.36 |
| CENTERLINE LENGTH M1 | 1.82 |
| CENTERLINE LENGTH M | 1.47 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.725 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
