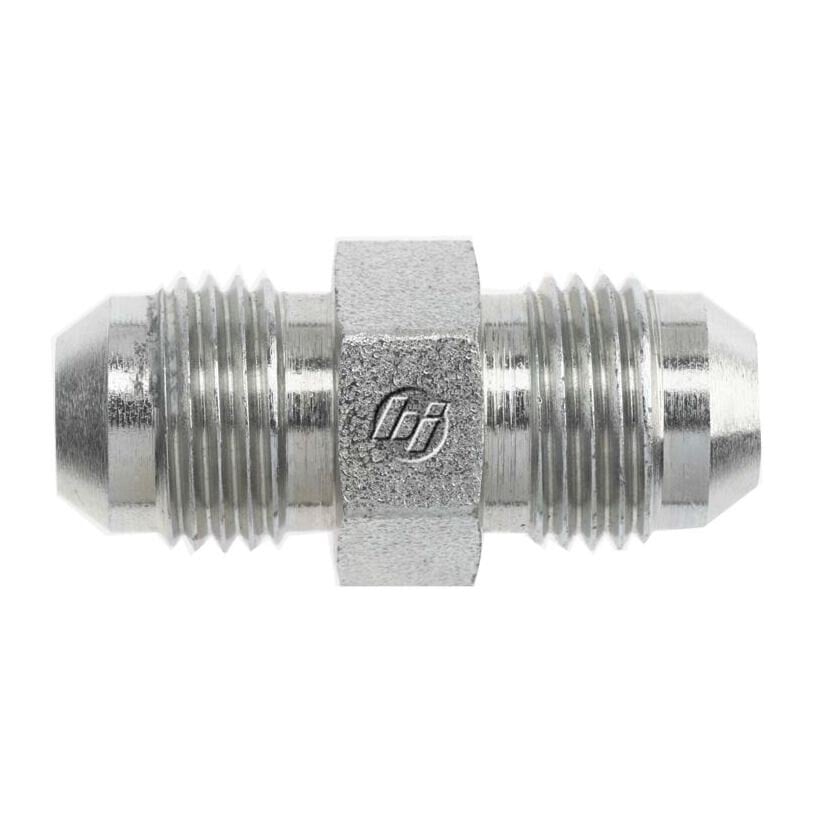

2403-12-08 (12MJ-08MJ Straight)
2403-12-08 (12MJ-08MJ Straight)
Regular price
$4.85 USD
Regular price
Sale price
$4.85 USD
Unit price
per

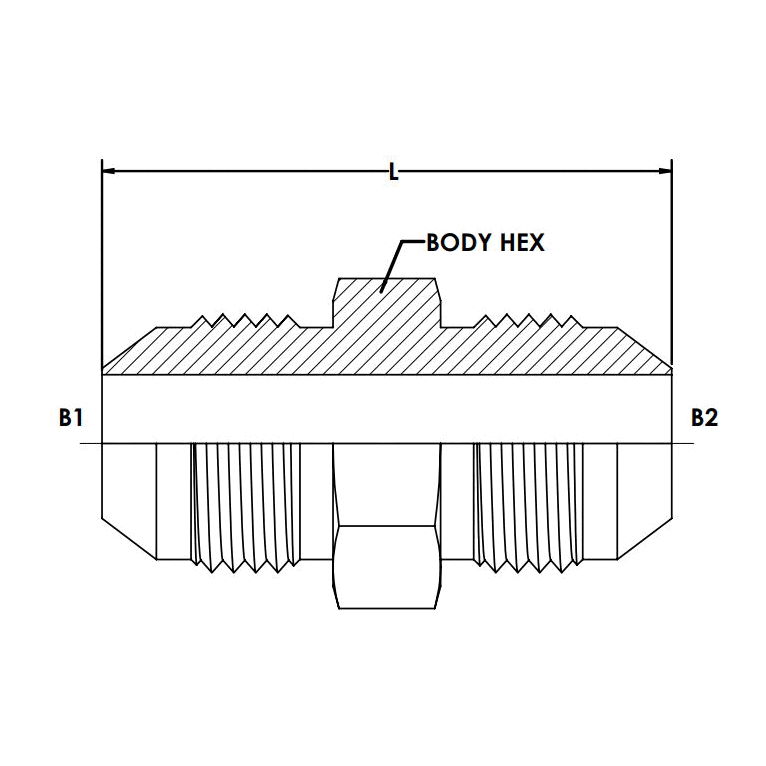

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 1-1/16-12 |
THREAD B1 DRILL | 0.609 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B2 SIZE | 3/4-16 |
THREAD B2 DRILL | 0.391 |
THREAD B2 SPECIFICATION | SAE J514 |
BODY HEX | 1.125 |
OVERALL LENGTH 1 | 1.95 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 0.256 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
