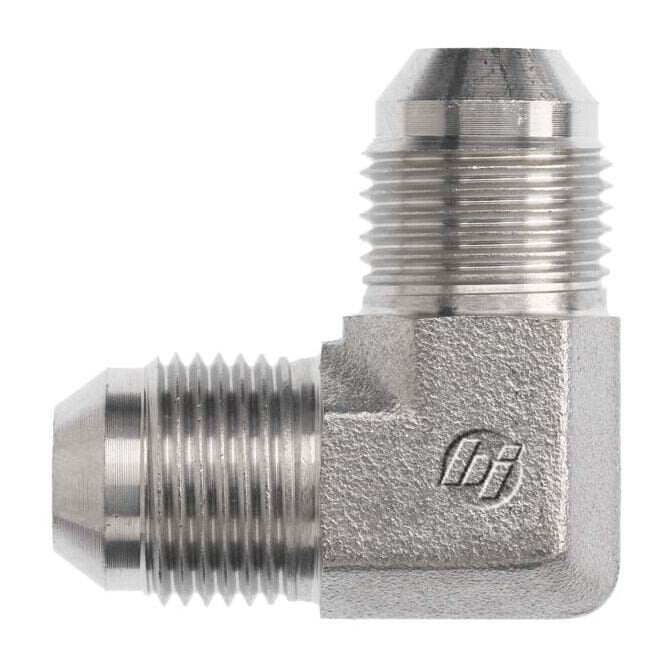

2500-12-12-FG (12MJ-12MJ 90° Elbow Forged)
2500-12-12-FG (12MJ-12MJ 90° Elbow Forged)
Regular price
$6.24 USD
Regular price
Sale price
$6.24 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |

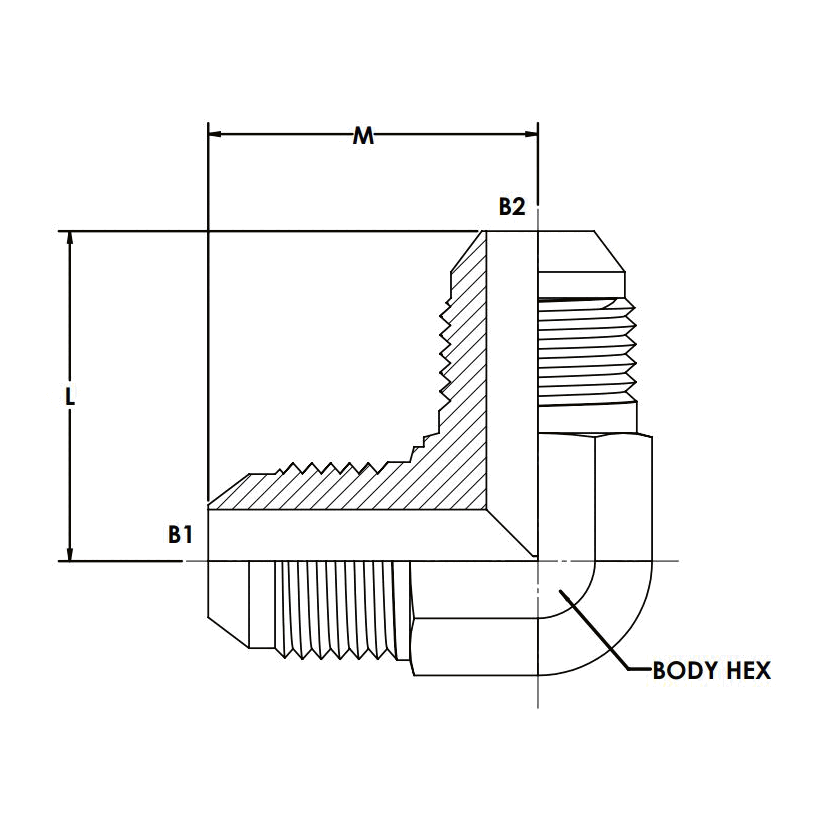

| BODY HEX | 1.062 |
| CENTERLINE LENGTH M | 1.66 |
| CENTERLINE LENGTH L | 1.66 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.494 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
