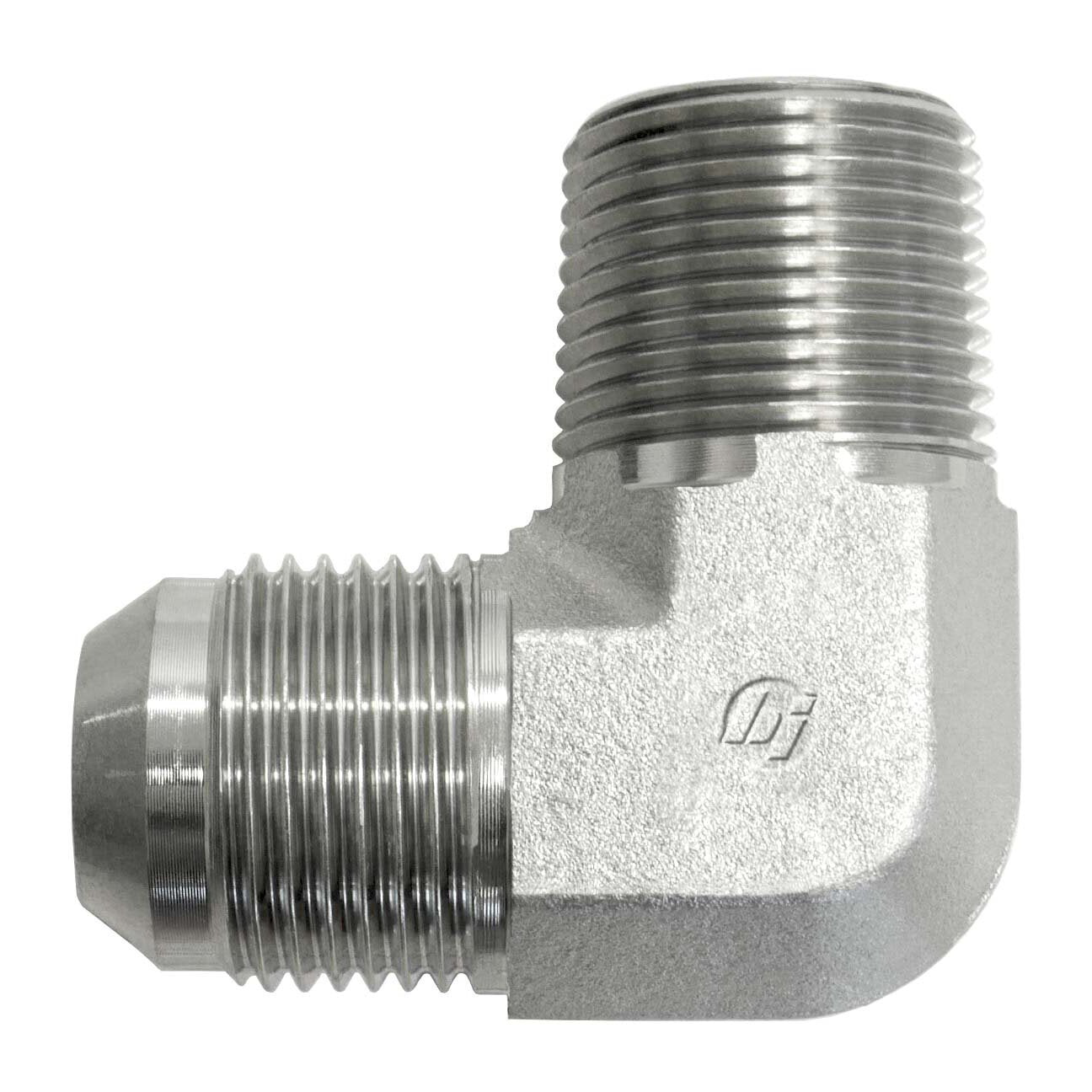

2501-12-12-SS (12MJ-12MP 90° Elbow Stnls)
2501-12-12-SS (12MJ-12MP 90° Elbow Stnls)
Regular price
$43.78 USD
Regular price
Sale price
$43.78 USD
Unit price
per
Couldn't load pickup availability

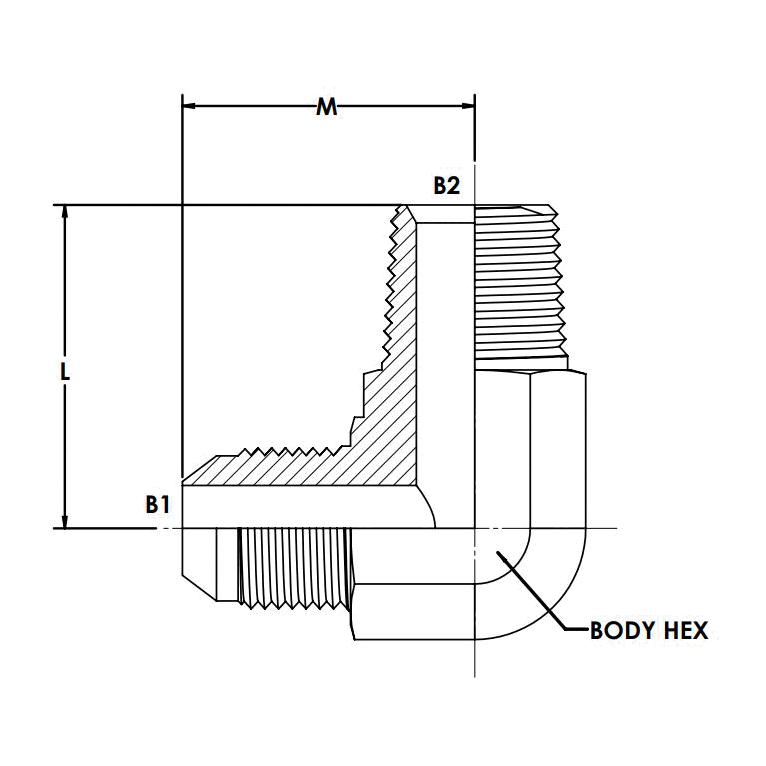

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.062 |
| CENTERLINE LENGTH M | 1.66 |
| CENTERLINE LENGTH L | 1.59 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 0.469 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
