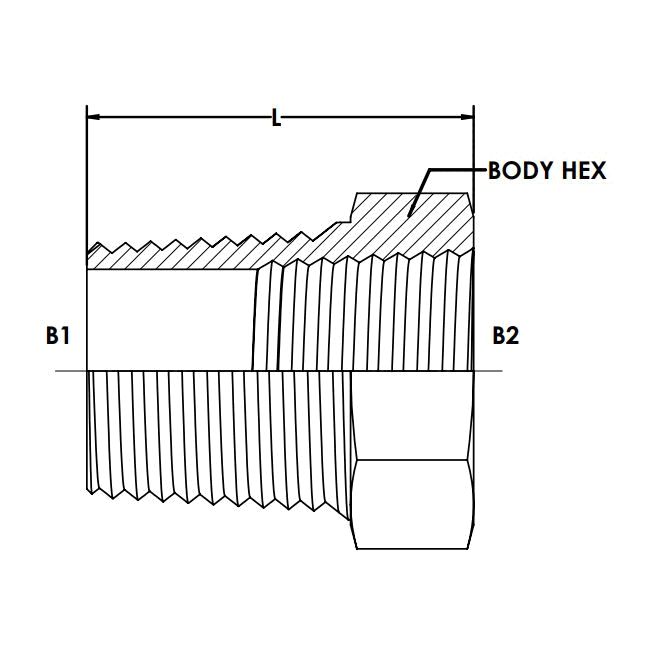

5406-12-04 (12MP-04FP Reducer Bushing)
5406-12-04 (12MP-04FP Reducer Bushing)
Regular price
$2.66 USD
Regular price
Sale price
$2.66 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL | 0.431 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.125 |
| OVERALL LENGTH L | 1.17 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.227 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,500 |
