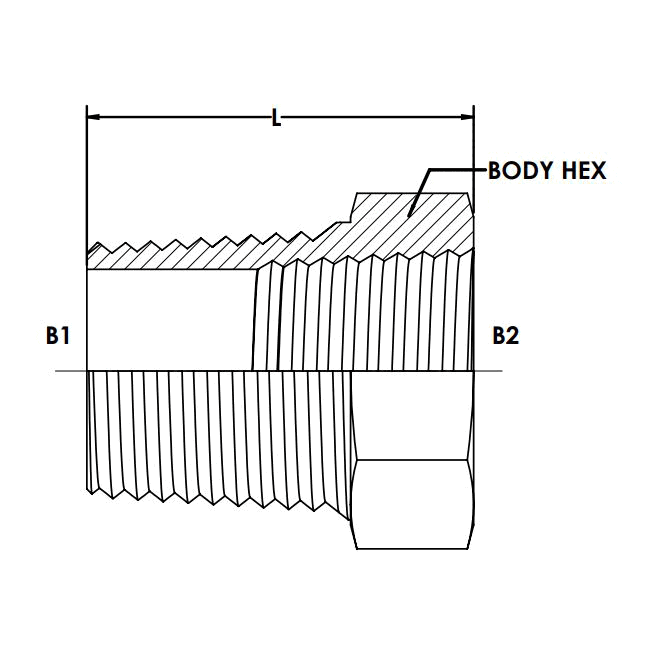

5406-12-08 (12MP-08FP Reducer Bushing)

5406-12-08 (12MP-08FP Reducer Bushing)

Regular price $3.03 USD
Regular price Sale price $3.03 USD
Sale Sold out
THREAD B1 TYPE MALE NPTF
THREAD B1 SIZE 3/4-14
THREAD B1 DRILL 0.697
THREAD B1 SPECIFICATION SAE J476
THREAD B2 TYPE FEMALE NPTF
THREAD B2 SIZE 1/2-14
THREAD B2 SPECIFICATION SAE J476
BODY HEX 1.125
OVERALL LENGTH L 1.17
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.120
MAXIMUM DYNAMIC PRESSURE (PSI) 5,000
