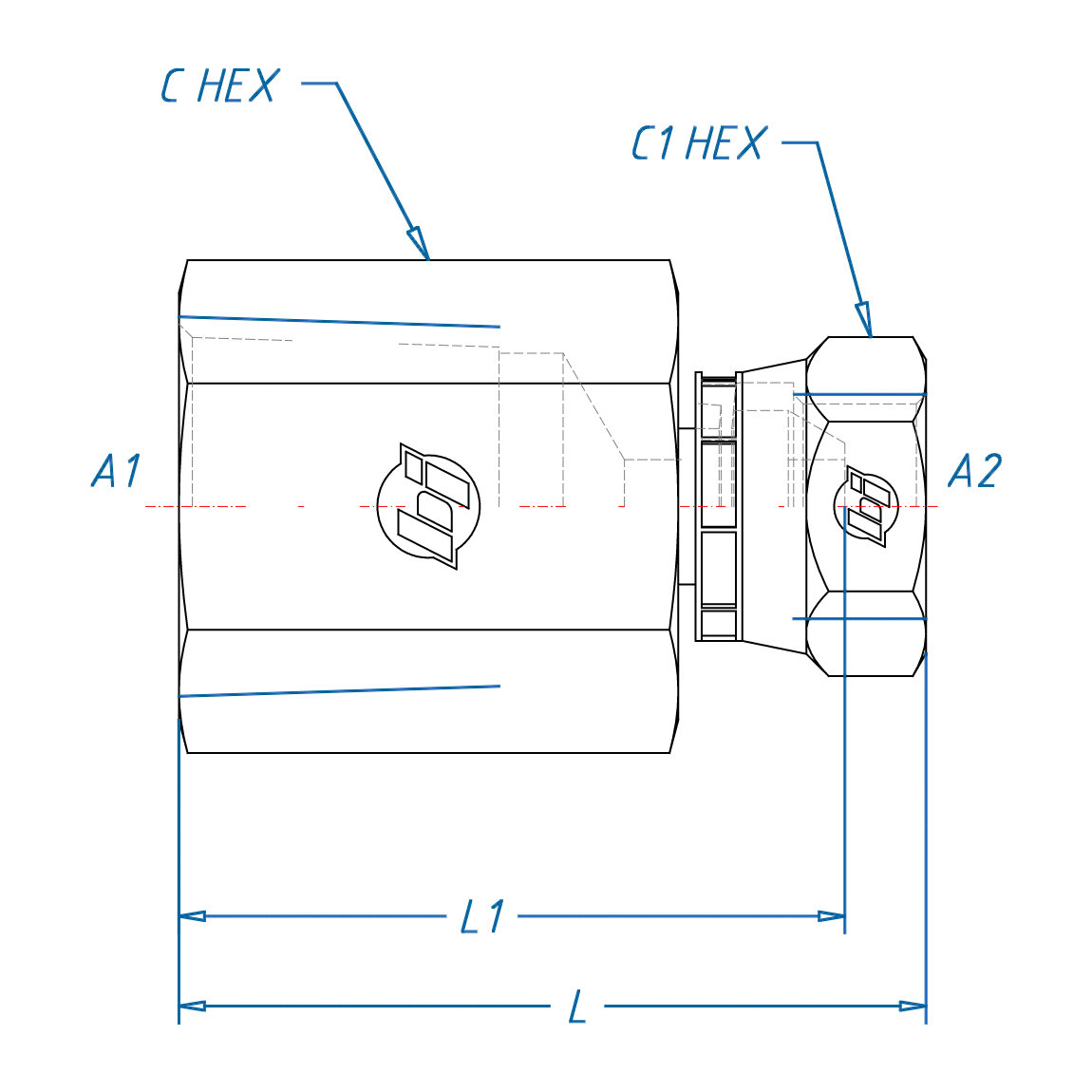

1405-16-16 (16FP-16FPS Straight)
1405-16-16 (16FP-16FPS Straight)
Regular price
$8.18 USD
Regular price
Sale price
$8.18 USD
Unit price
per
Couldn't load pickup availability
| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 1-11-1/2 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1-11-1/2 |
| THREAD A2 DRILL | 0.780 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.500 |
| C HEX 1 | 1.500 |
| OVERALL LENGTH L | 2.35 |
| OVERALL LENGTH L1 | 2.00 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.550 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,500 |
