6801-16-12-NWO-FG (16MJ-12MAORB 90° Elbow Forged)

6801-16-12-NWO-FG (16MJ-12MAORB 90° Elbow Forged)

Regular price $11.18 USD
Regular price Sale price $11.18 USD
Sale Sold out

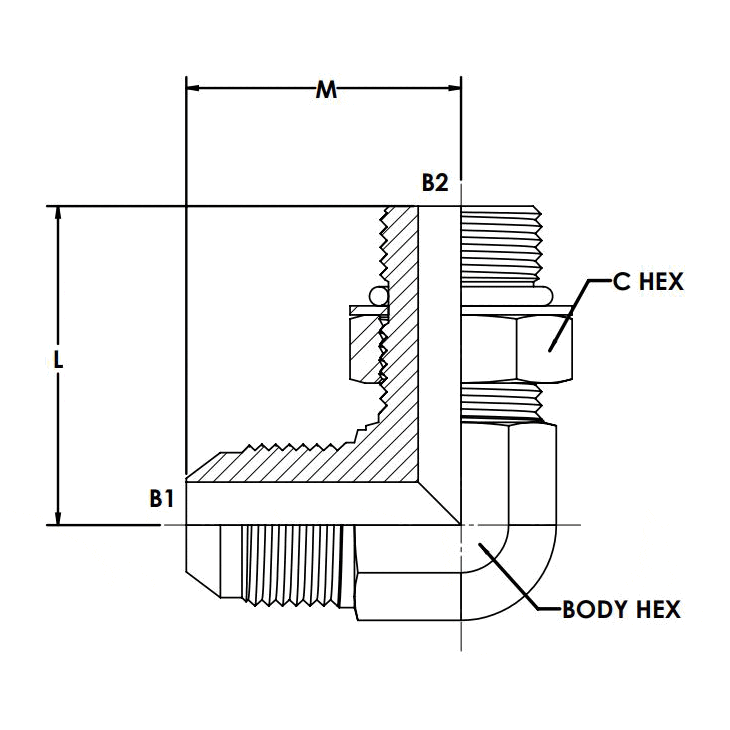

THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1-5/16-12
THREAD B1 DRILL 0.844
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE 1-1/16-12
THREAD B2 DRILL 0.609
THREAD B2 SPECIFICATION SAE J514
BODY HEX 1.312
C HEX 1 1.250
CENTERLINE LENGTH M 1.81
CENTERLINE LENGTH L 2.05
SHAPE 90 DEGREE ANGLE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT (LBS) 0.850
MAXIMUM DYNAMIC PRESSURE (PSI) 4,000
