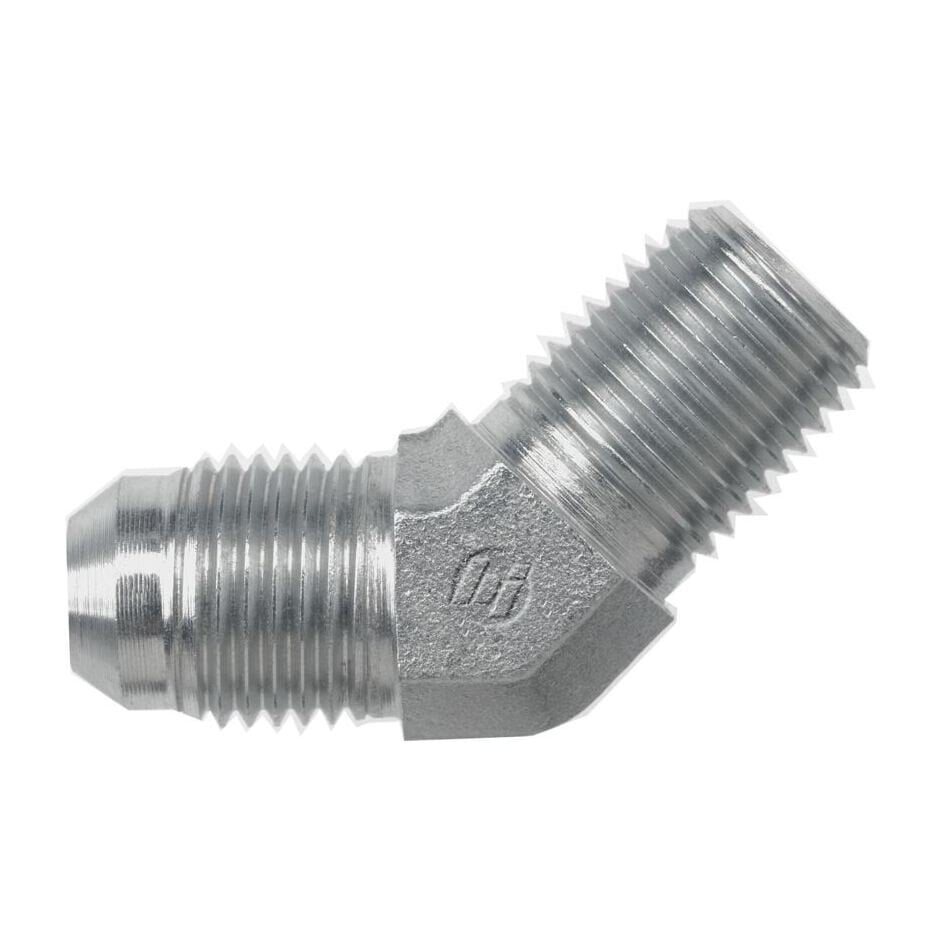

2503-16-12 (16MJ-12MP 45° Elbow Forged)
2503-16-12 (16MJ-12MP 45° Elbow Forged)
Regular price
$9.11 USD
Regular price
Sale price
$9.11 USD
Unit price
per
Couldn't load pickup availability

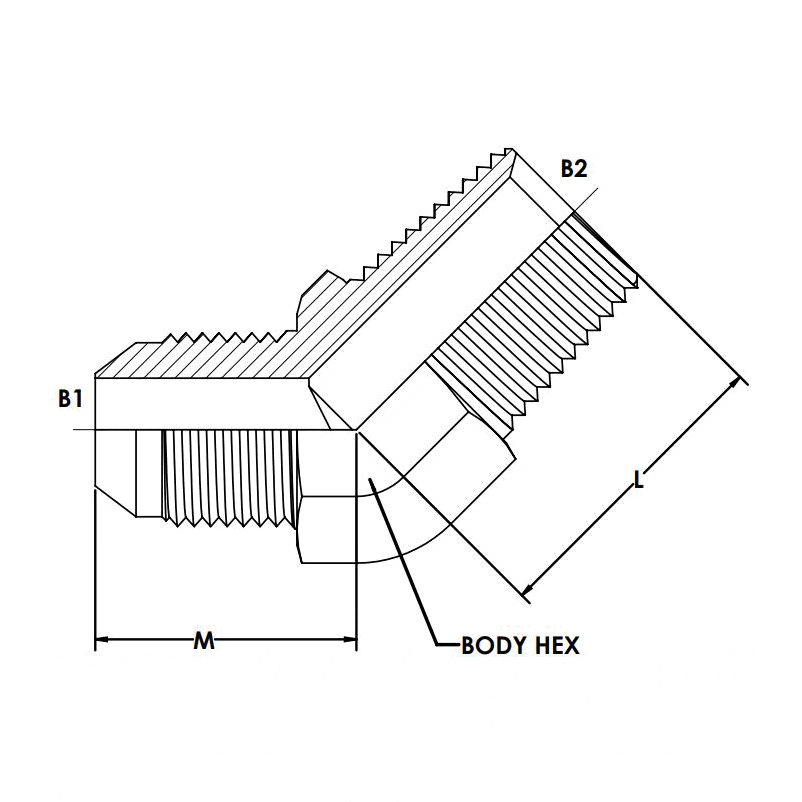

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.312 |
| CENTERLINE LENGTH M | 1.47 |
| CENTERLINE LENGTH L | 1.29 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.500 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
