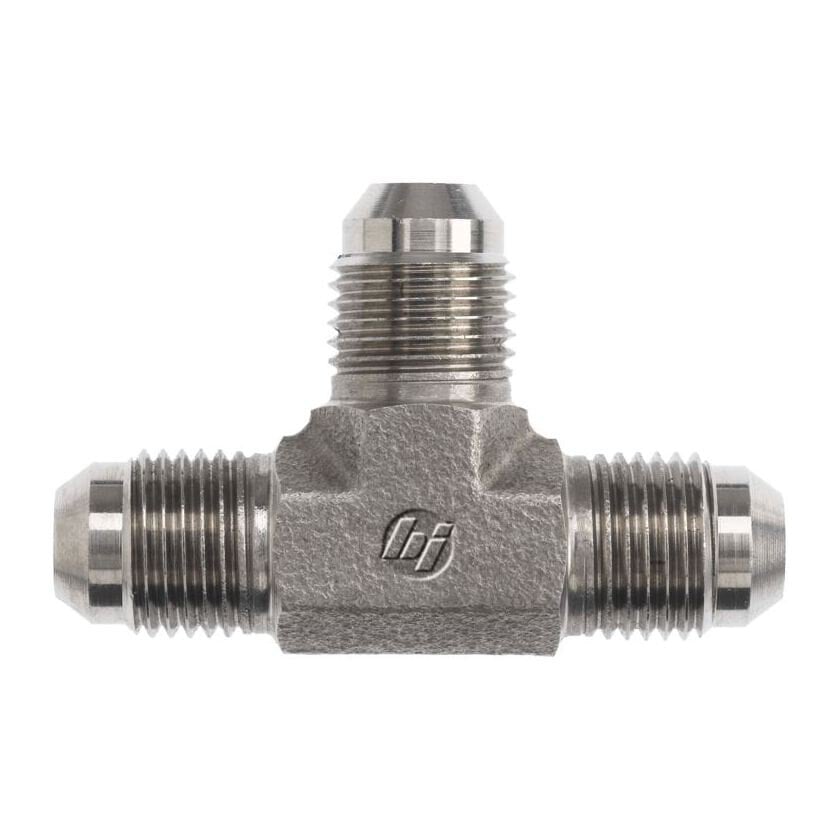

2603-16-16-16-FG (16MJ-16MJ-16MJ Tee Forged)
2603-16-16-16-FG (16MJ-16MJ-16MJ Tee Forged)
Regular price
$14.84 USD
Regular price
Sale price
$14.84 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD B3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B3 SIZE | 1-5/16-12 |
| THREAD B3 DRILL | 0.844 |
| THREAD B3 SPECIFICATION | SAE J514 |

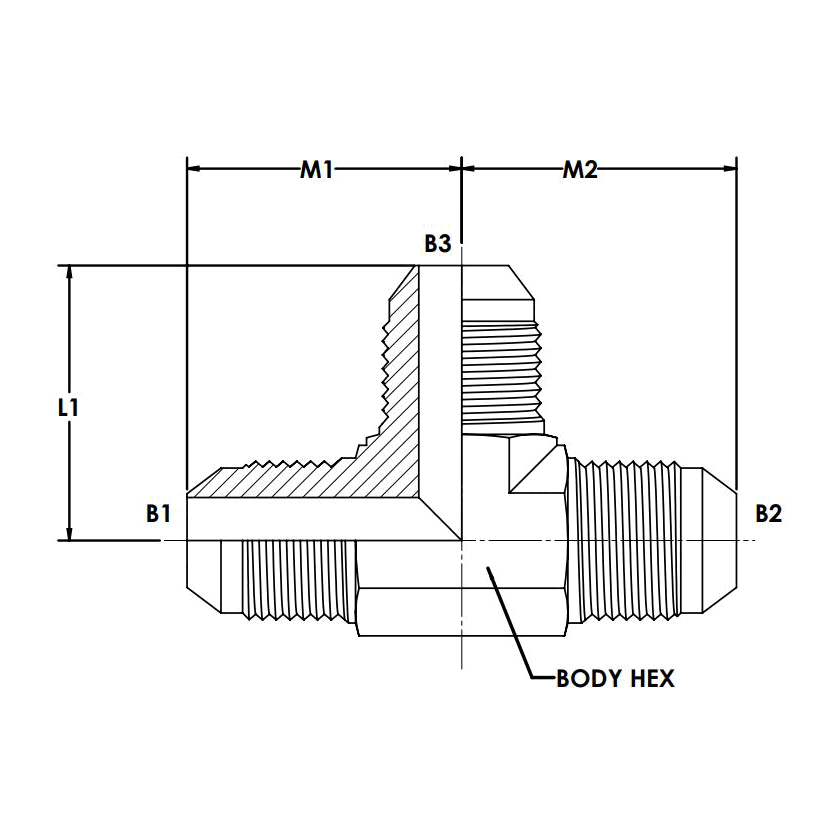

| BODY HEX | 1.312 |
| OVERALL LENGTH (M1,M2) | 3.62 |
| OVERALL HEIGHT (L1 + 1/2 HEX) | 2.47 |
| CENTERLINE LENGTH M1 | 1.81 |
| CENTERLINE LENGTH M2 | 1.81 |
| CENTERLINE LENGTH L1 | 1.81 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.942 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
