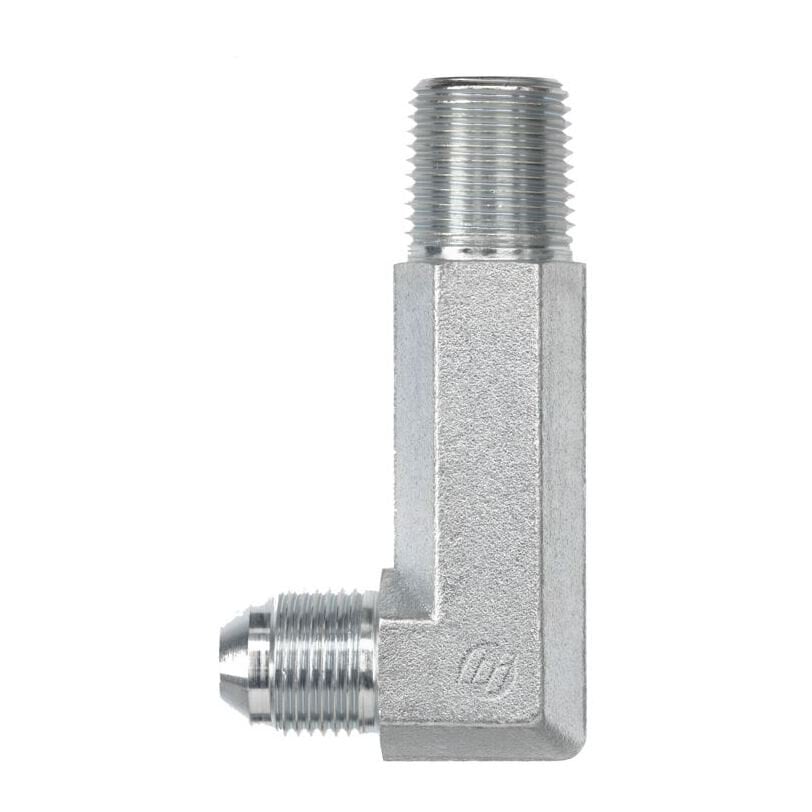

2501-LL-16-16 (16MJ-16MP 90° Elbow X-Long)
2501-LL-16-16 (16MJ-16MP 90° Elbow X-Long)
Regular price
$19.50 USD
Regular price
Sale price
$19.50 USD
Unit price
per
Couldn't load pickup availability

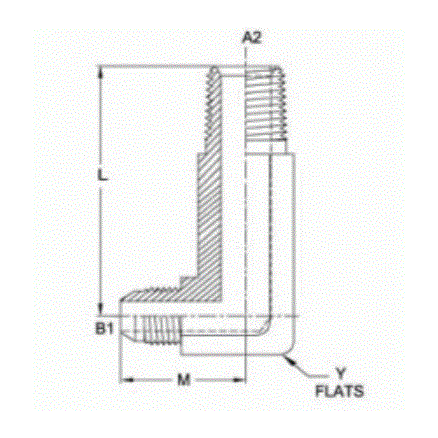

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL | 0.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.312 |
| CENTERLINE LENGTH M | 1.81 |
| CENTERLINE LENGTH L | 4.05 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.219 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
