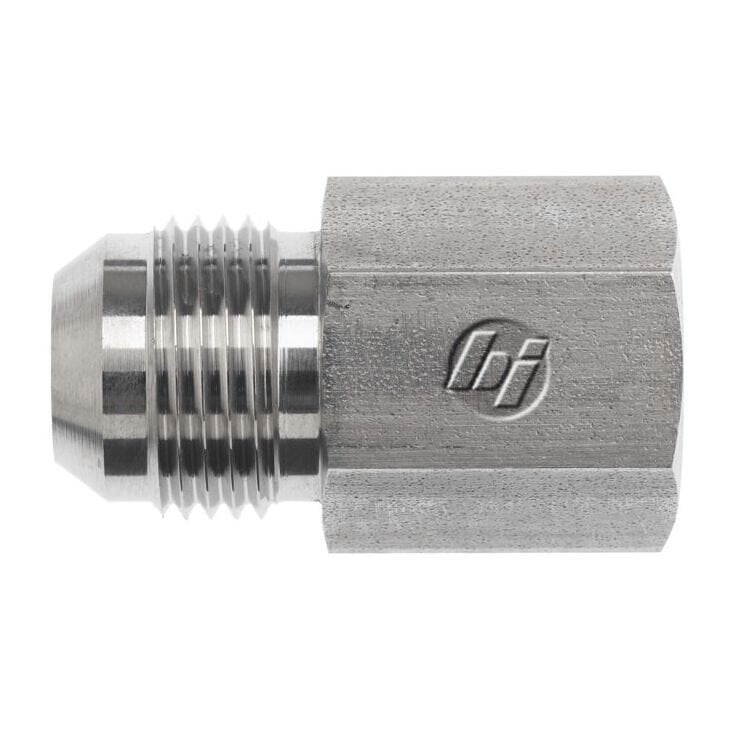

2405-16-20 (16MJ-20FP Straight)
2405-16-20 (16MJ-20FP Straight)
Regular price
$24.60 USD
Regular price
Sale price
$24.60 USD
Unit price
per

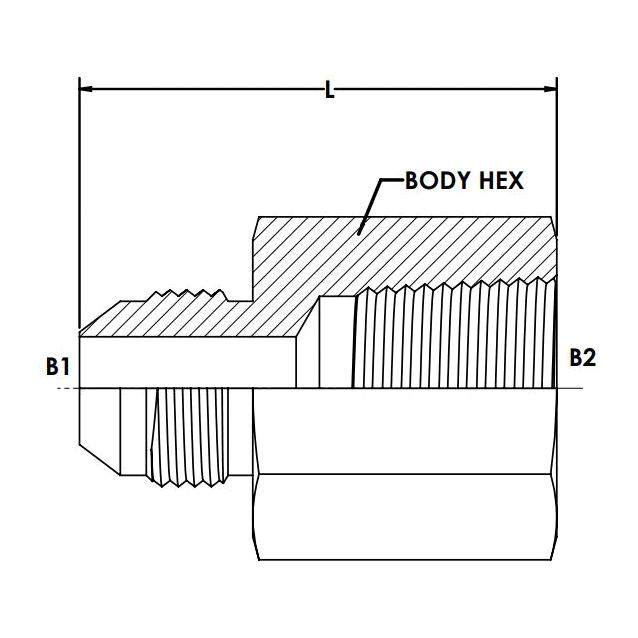

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 1-5/16-12 |
THREAD B1 DRILL | 0.844 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | FEMALE NPTF |
THREAD B2 SIZE | 1-1/4-11-1/2 |
THREAD B2 SPECIFICATION | SAE J476 |
BODY HEX | 2.000 |
OVERALL LENGTH 1 | 2.44 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 1.000 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 2,500 |
