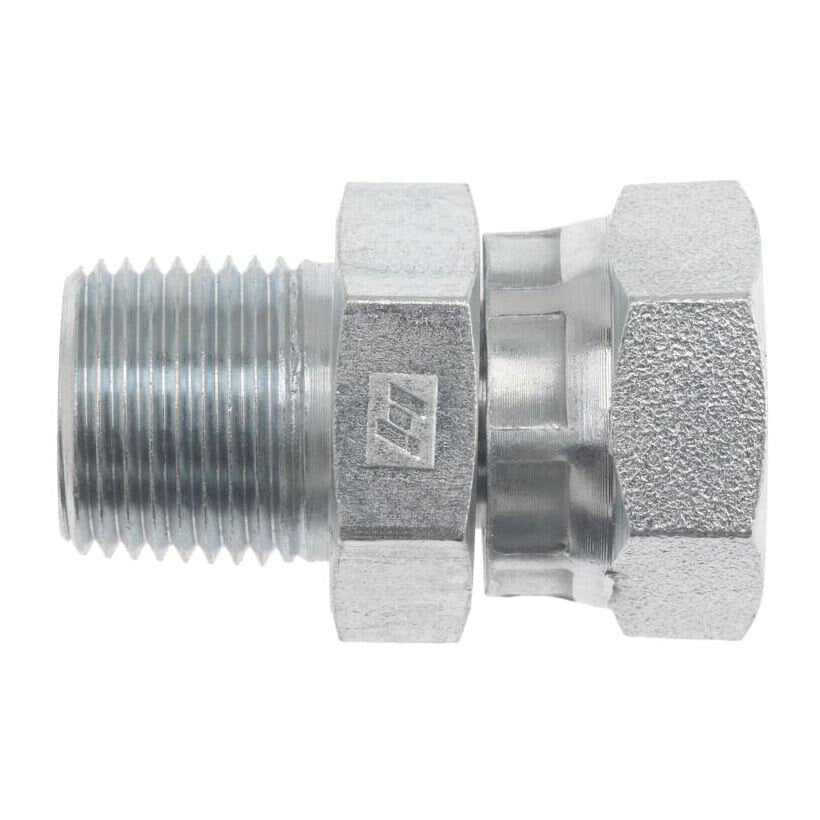

1404-16-16 (16MP-16FPS Straight)
1404-16-16 (16MP-16FPS Straight)
Regular price
$8.76 USD
Regular price
Sale price
$8.76 USD
Unit price
per
THREAD A1 TYPE | MALE NPTF |
THREAD A1 SIZE | 1-11-1/2 |
THREAD A1 DRILL | 0.938 |
THREAD A1 SPECIFICATION | SAE J476 |
THREAD A2 TYPE | FEMALE NPSM SWIVEL |
THREAD A2 SIZE | 1-11-1/2 |
THREAD A2 DRILL | 0.78 |
THREAD A2 SPECIFICATION | SAE J514 |

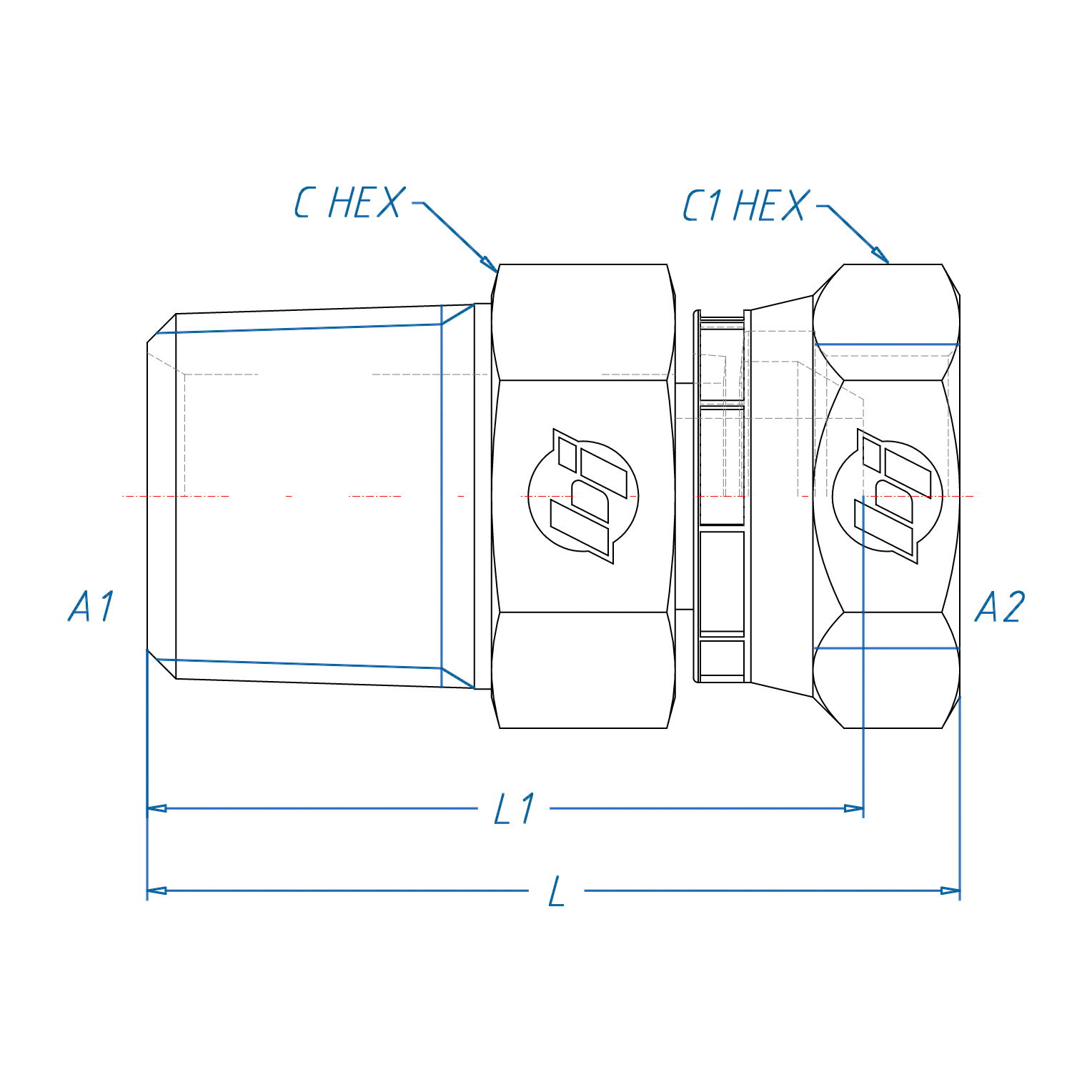

BODY HEX | 1.500 |
C HEX 1 | 1.500 |
OVERALL LENGTH L | 2.35 |
OVERALL LENGTH L1 | 2.00 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 0.540 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 2,500 |
