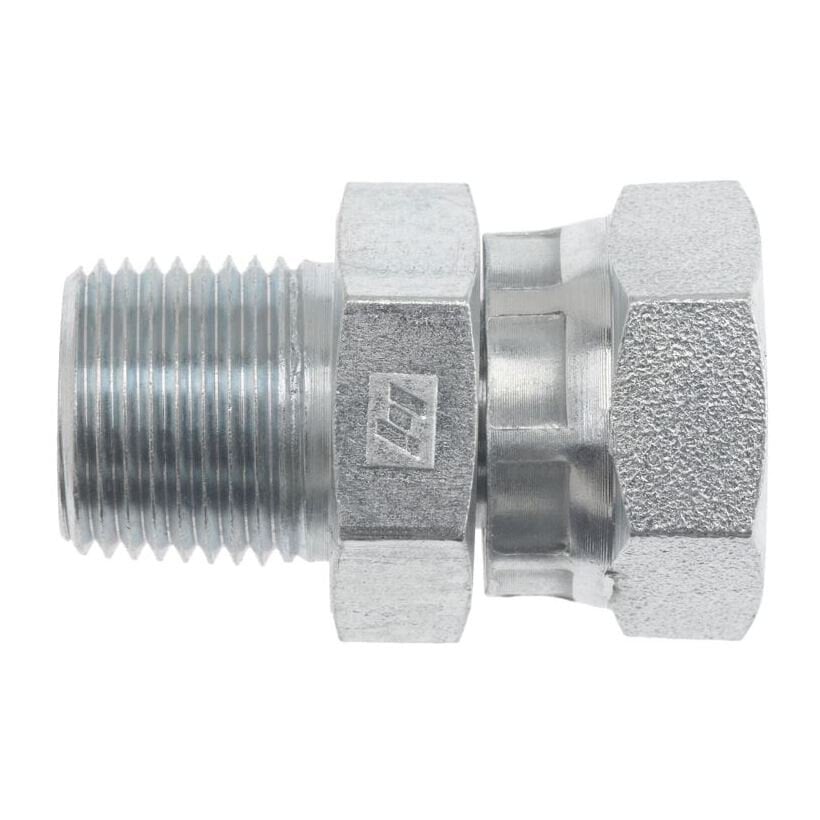

1404-16-24 (16MP-24FPS Straight)
1404-16-24 (16MP-24FPS Straight)
Regular price
$74.42 USD
Regular price
Sale price
$74.42 USD
Unit price
per
Couldn't load pickup availability

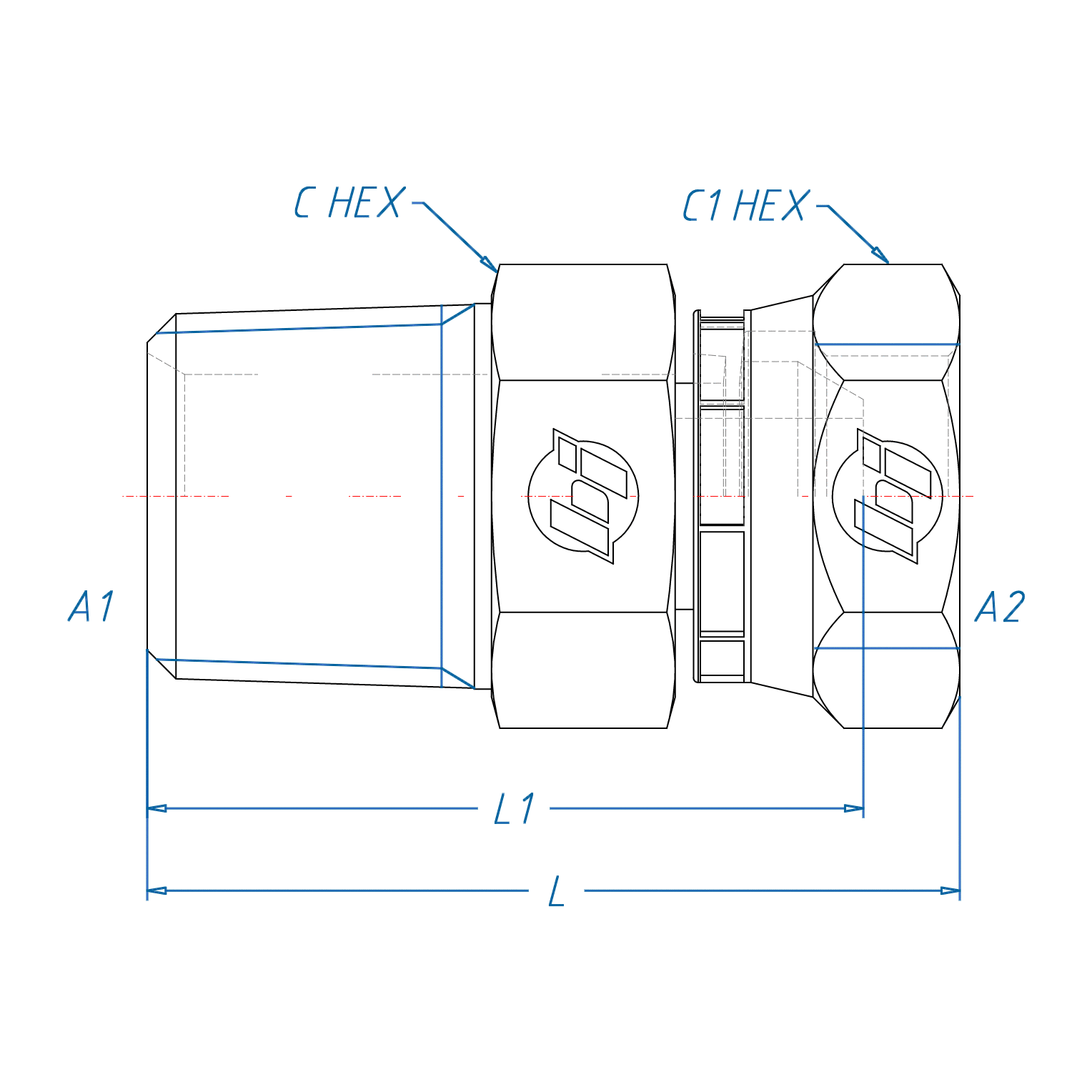

| THREAD A1 TYPE | MALE NPTF |
| THREAD A1 SIZE | 1-11-1/2 |
| THREAD A1 DRILL | 0.938 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1-1/2-11-1/2 |
| THREAD A2 DRILL | 1.25 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 2.125 |
| C HEX 1 | 2.125 |
| OVERALL LENGTH L | 2.55 |
| OVERALL LENGTH L1 | 2.17 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.956 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
