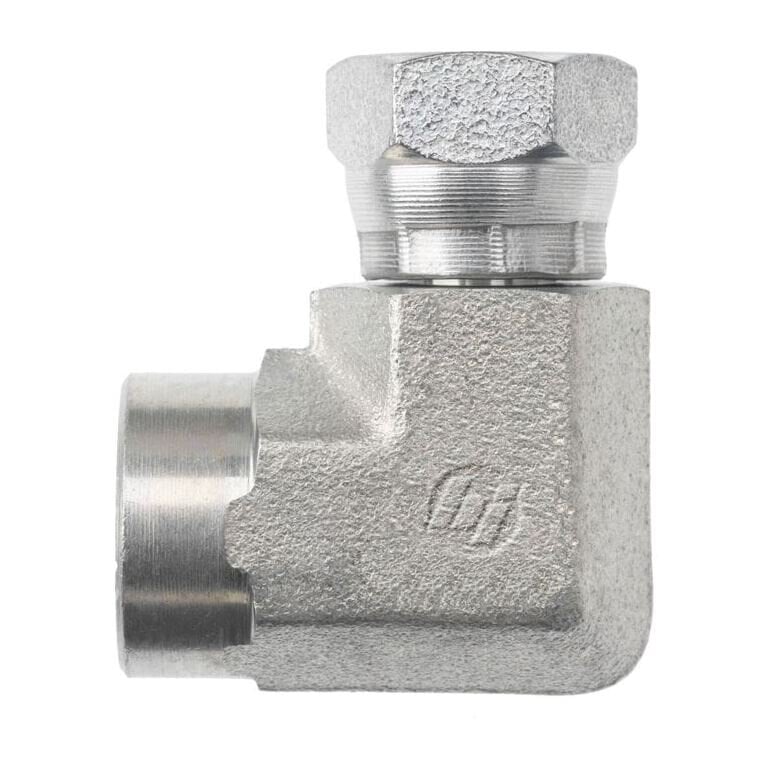

1502-20-20-FG (20FP-20FPS 90° Elbow Forged)
1502-20-20-FG (20FP-20FPS 90° Elbow Forged)
Regular price
$30.17 USD
Regular price
Sale price
$30.17 USD
Unit price
per
Couldn't load pickup availability

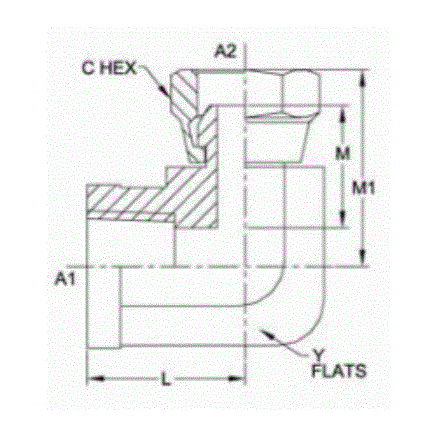

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 1-1/4-11-1/2 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1-1/4-11-1/2 |
| THREAD A2 DRILL | 1.030 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.875 |
| C HEX 1 | 1.875 |
| CENTERLINE LENGTH L | 1.70 |
| CENTERLINE LENGTH M1 | 2.25 |
| CENTERLINE LENGTH M | 1.83 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.640 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
