1405-20-20 (20FP-20FPS Straight)
1405-20-20 (20FP-20FPS Straight)
Regular price
$16.19 USD
Regular price
Sale price
$16.19 USD
Unit price
per
Couldn't load pickup availability

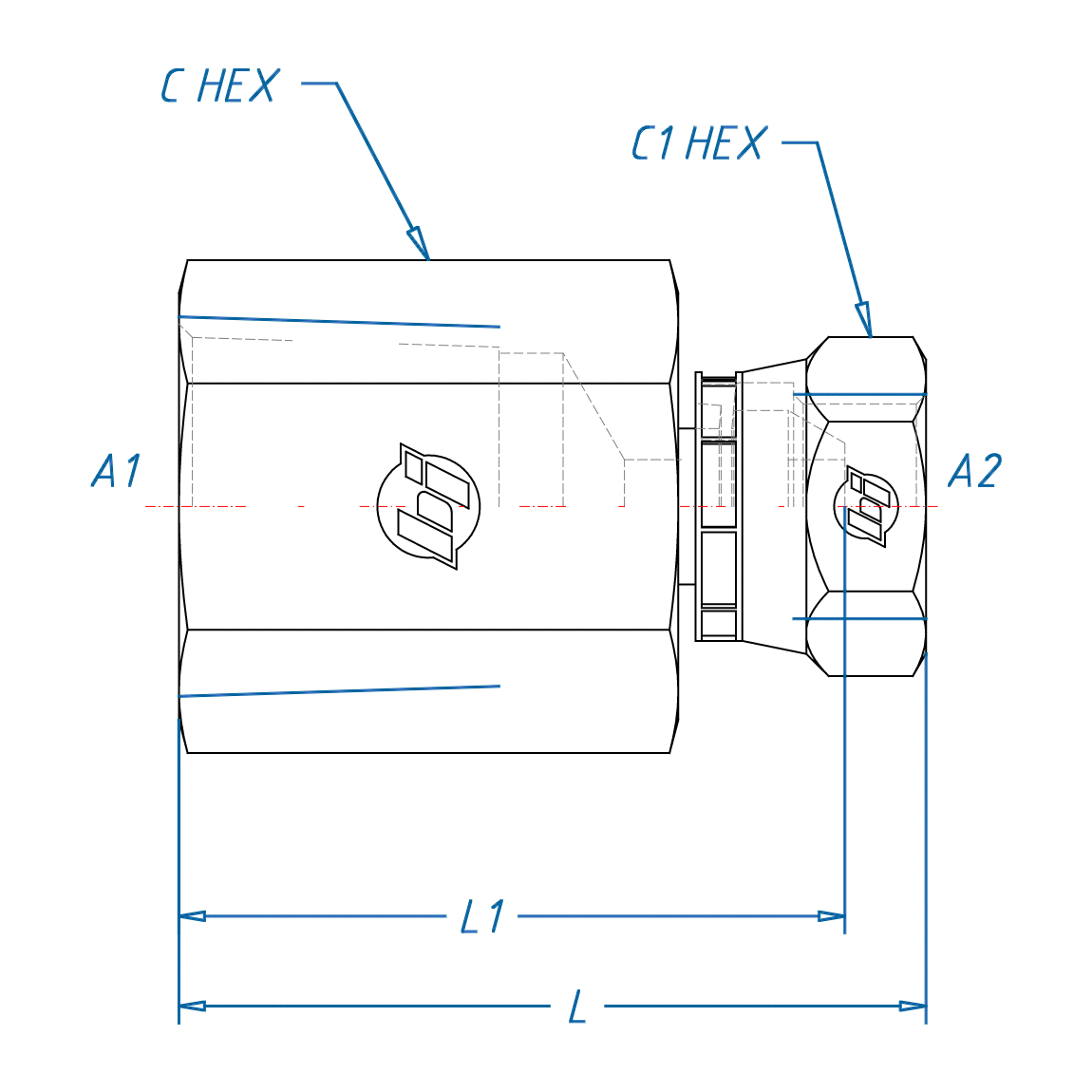

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 1-1/4-11-1/2 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1-1/4-11-1/2 |
| THREAD A2 DRILL | 1.010 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.875 |
| C HEX 1 | 1.875 |
| OVERALL LENGTH L | 2.40 |
| OVERALL LENGTH L1 | 1.98 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.867 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
