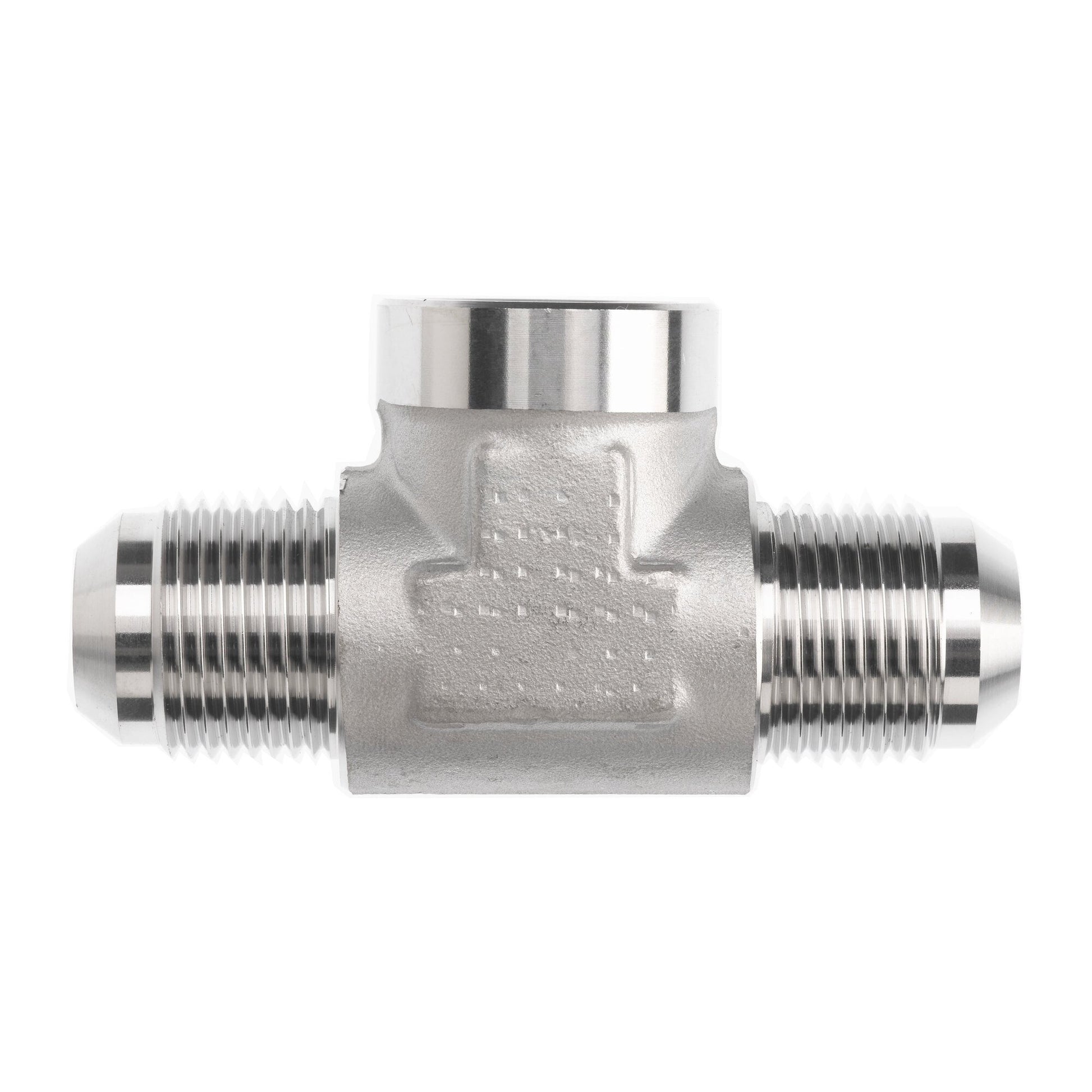

2602-20-20-20-FG (20MJ-20MJ-20FP Branch Tee )
2602-20-20-20-FG (20MJ-20MJ-20FP Branch Tee )
Regular price
$40.98 USD
Regular price
Sale price
$40.98 USD
Unit price
per
Couldn't load pickup availability

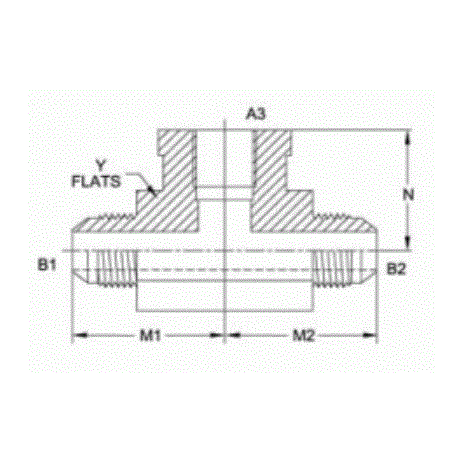

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | FEMALE NPTF |
| THREAD A3 SIZE | 1-1/4-11-1/2 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 1.875 |
| OVERALL LENGTH (M1,M2) | 4.66 |
| OVERALL HEIGHT (N + 1/2 HEX) | 2.638 |
| CENTERLINE LENGTH M1 | 2.33 |
| CENTERLINE LENGTH M2 | 2.33 |
| CENTERLINE LENGTH N | 1.70 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 2.100 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,500 |
