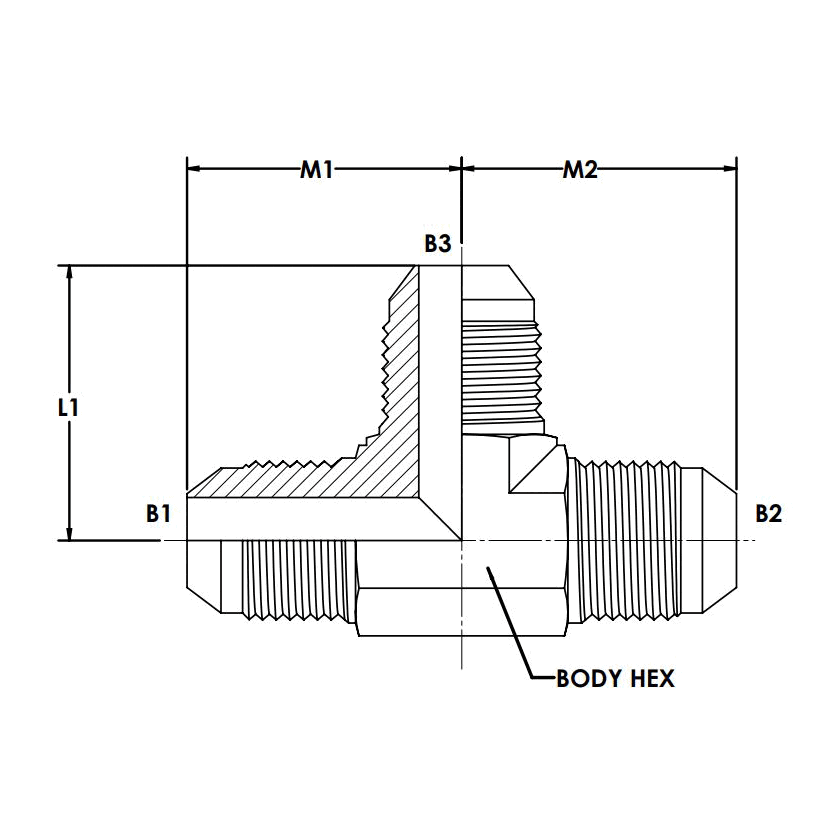

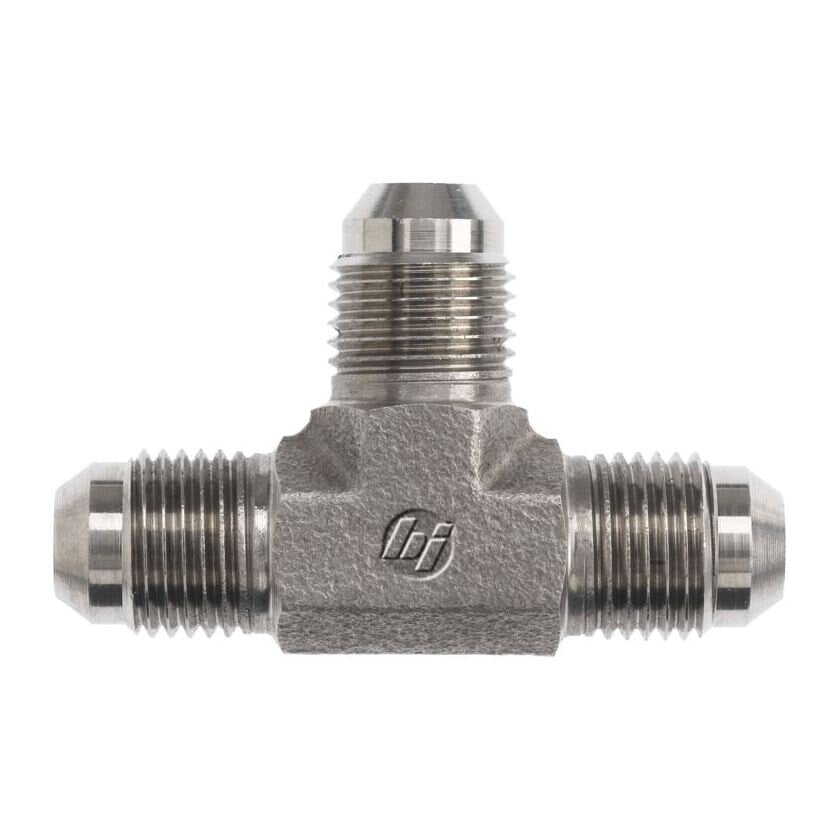

2603-20-20-20-FG (20MJ-20MJ-20MJ Tee Forged)
2603-20-20-20-FG (20MJ-20MJ-20MJ Tee Forged)
Regular price
$32.69 USD
Regular price
Sale price
$32.69 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD B3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B3 SIZE | 1-5/8-12 |
| THREAD B3 DRILL | 1.078 |
| THREAD B3 SPECIFICATION | SAE J514 |
| BODY HEX | 1.625 |
| OVERALL LENGTH (M1,M2) | 4.12 |
| OVERALL HEIGHT (L1 + 1/2 HEX) | 2.87 |
| CENTERLINE LENGTH M1 | 2.06 |
| CENTERLINE LENGTH M2 | 2.06 |
| CENTERLINE LENGTH L1 | 2.06 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.800 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
