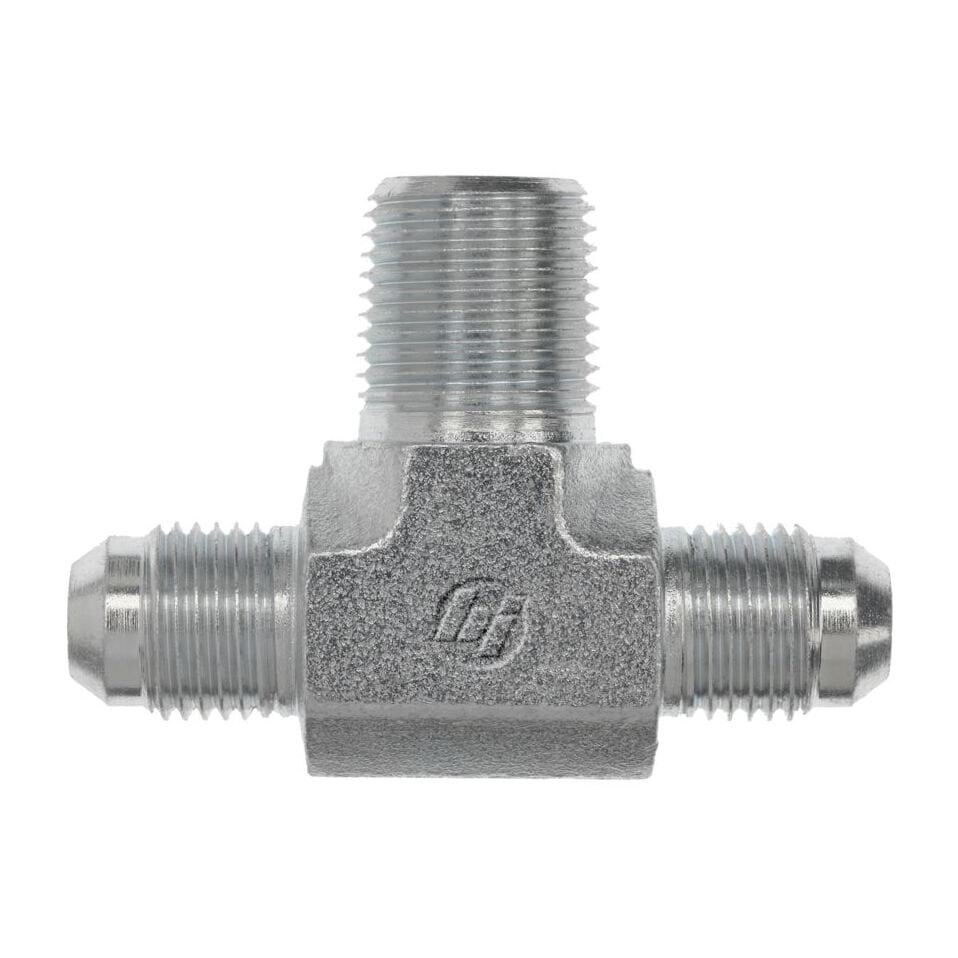

2601-20-20-20-FG (20MJ-20MJ-20MP Branch Tee )
2601-20-20-20-FG (20MJ-20MJ-20MP Branch Tee )
Regular price
$44.83 USD
Regular price
Sale price
$44.83 USD
Unit price
per
Couldn't load pickup availability

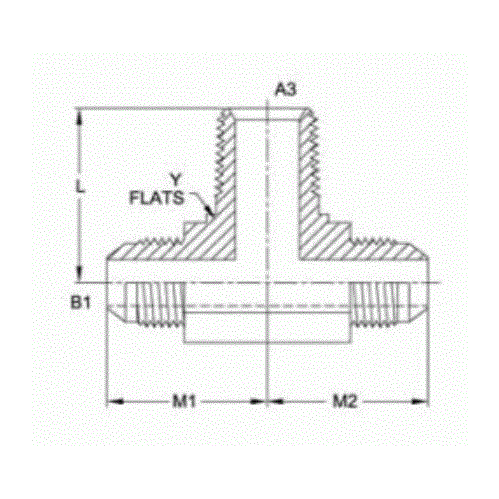

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | MALE NPTF |
| THREAD A3 SIZE | 1-1/4-11-1/2 |
| THREAD A3 DRILL | 1.250 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 1.625 |
| OVERALL LENGTH (M1,M2) | 4.12 |
| OVERALL HEIGHT (L + 1/2 HEX) | 3.193 |
| CENTERLINE LENGTH M1 | 2.06 |
| CENTERLINE LENGTH M2 | 2.06 |
| CENTERLINE LENGTH L | 2.38 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.730 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
