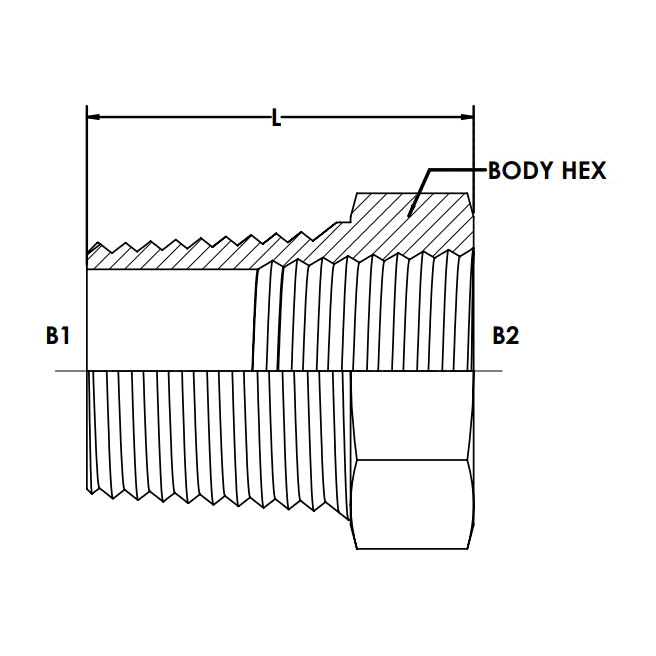

5406-20-08 (20MP-08FP Reducer Bushing)
5406-20-08 (20MP-08FP Reducer Bushing)
Regular price
$8.34 USD
Regular price
Sale price
$8.34 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL | 0.697 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.750 |
| OVERALL LENGTH L | 1.47 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.733 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
