5502-20-16-FG (20MP-16FP 90° Street Elbow Fo...)
5502-20-16-FG (20MP-16FP 90° Street Elbow Fo...)
Regular price
$37.21 USD
Regular price
Sale price
$37.21 USD
Unit price
per
Couldn't load pickup availability

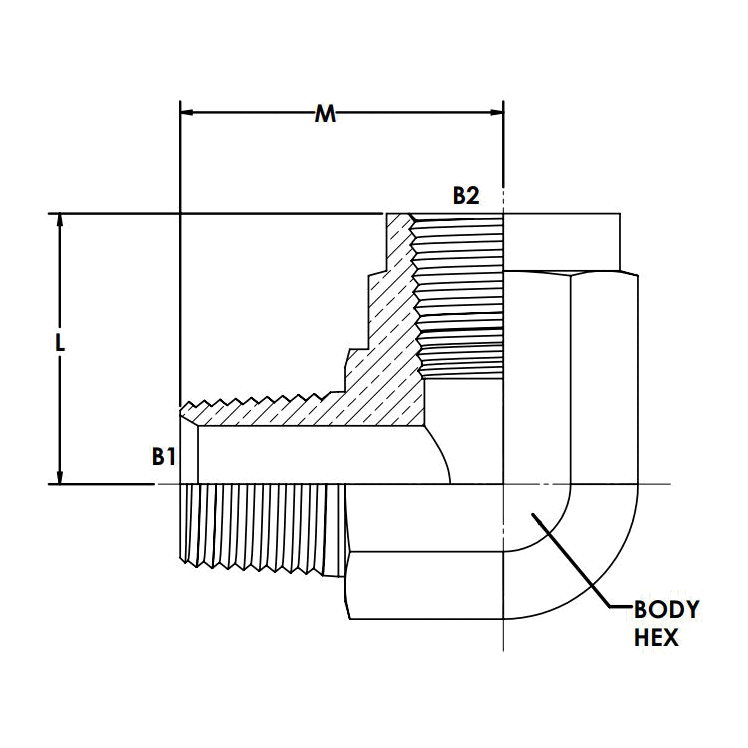

| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.625 |
| CENTERLINE LENGTH M | 2.38 |
| CENTERLINE LENGTH L | 1.62 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.013 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
