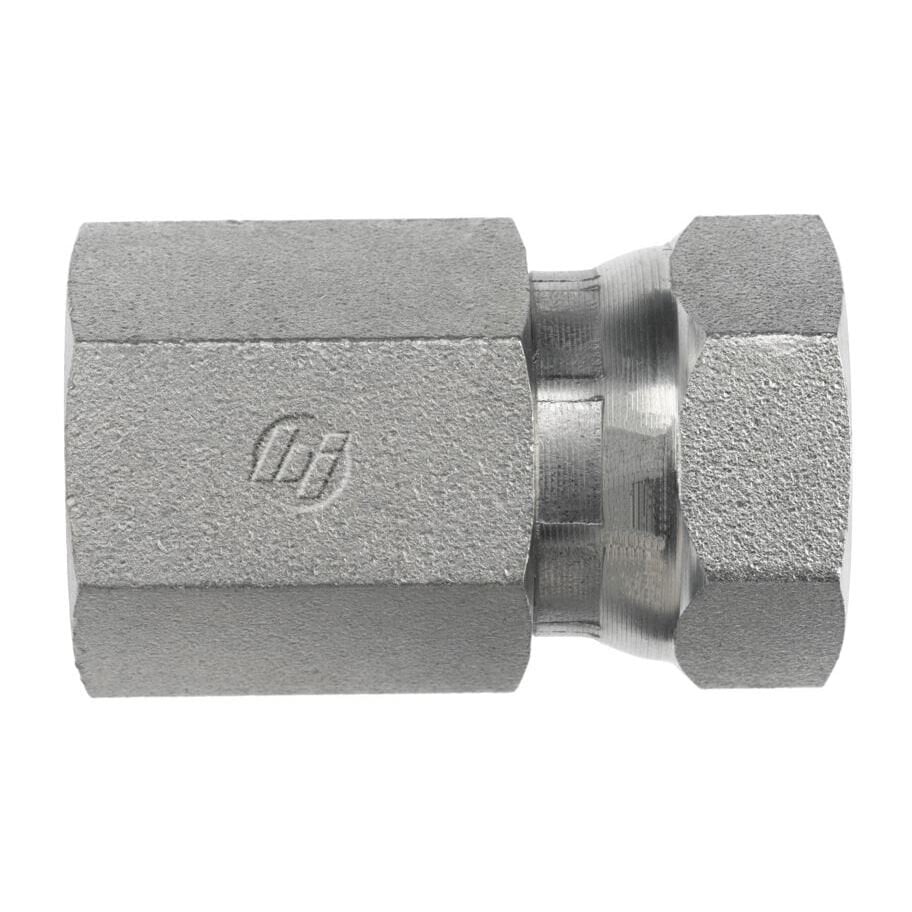

1405-24-24 (24FP-24FPS Straight)
1405-24-24 (24FP-24FPS Straight)
Regular price
$26.05 USD
Regular price
Sale price
$26.05 USD
Unit price
per
THREAD A1 TYPE | FEMALE NPTF |
THREAD A1 SIZE | 1-1/2-11-1/2 |
THREAD A1 SPECIFICATION | SAE J476 |
THREAD A2 TYPE | FEMALE NPSM SWIVEL |
THREAD A2 SIZE | 1-1/2-11-1/2 |
THREAD A2 DRILL | 1.250 |
THREAD A2 SPECIFICATION | SAE J514 |

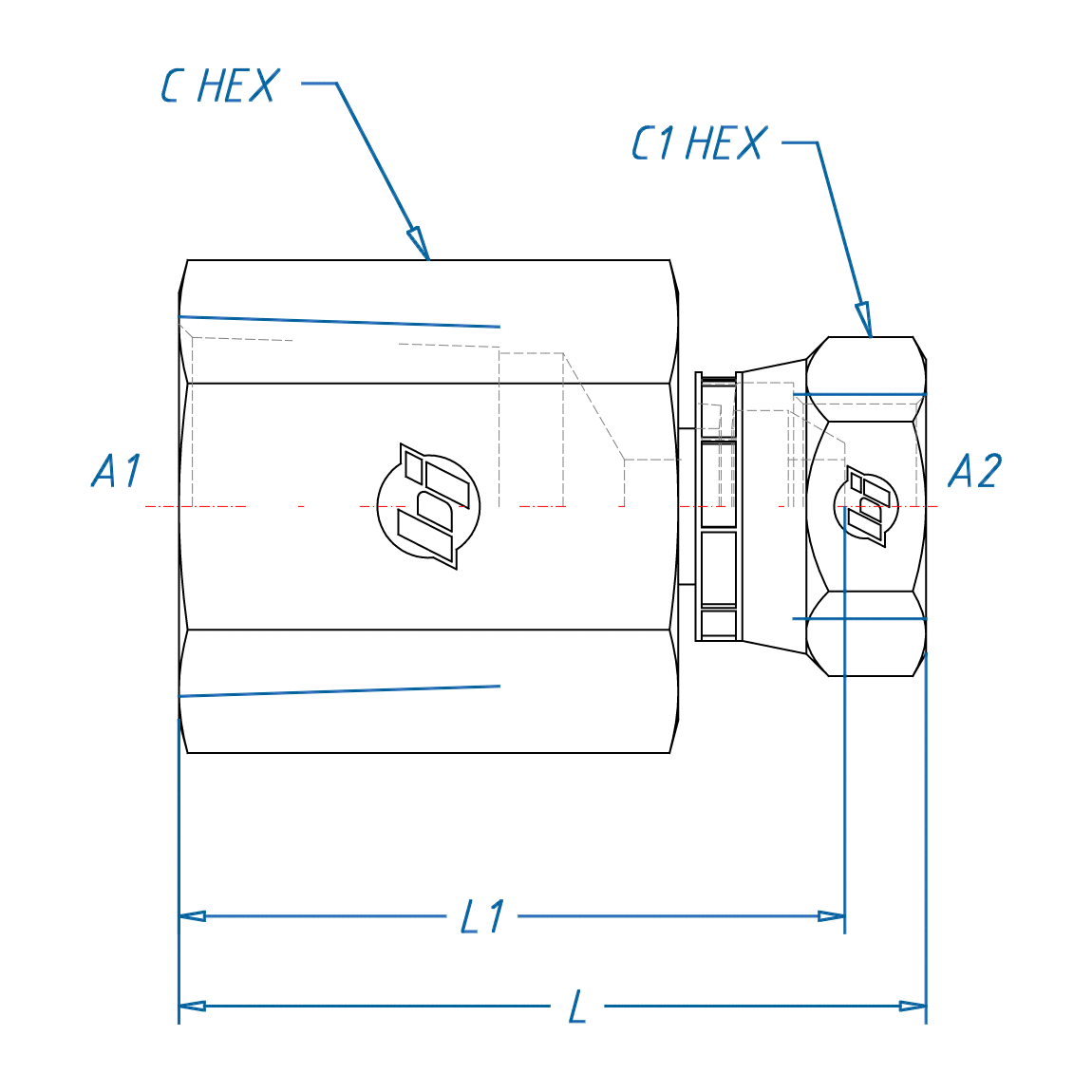

BODY HEX | 2.125 |
C HEX 1 | 2.125 |
OVERALL LENGTH L | 2.52 |
OVERALL LENGTH L1 | 2.10 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 1.050 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
