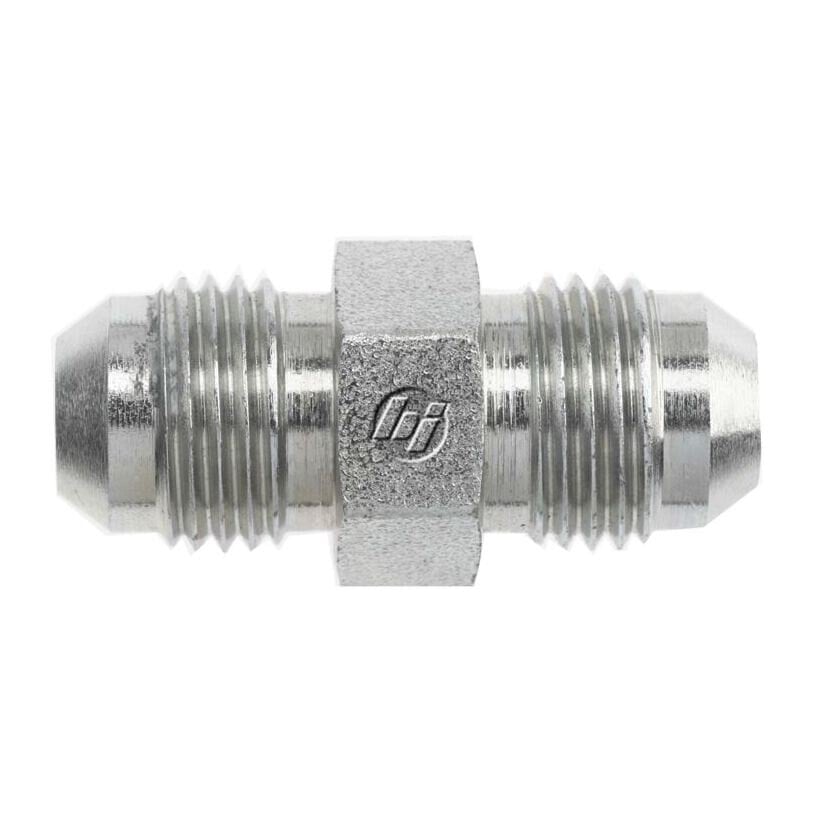

2403-24-20 (24MJ-20MJ Straight)
2403-24-20 (24MJ-20MJ Straight)
Regular price
$21.04 USD
Regular price
Sale price
$21.04 USD
Unit price
per
Couldn't load pickup availability

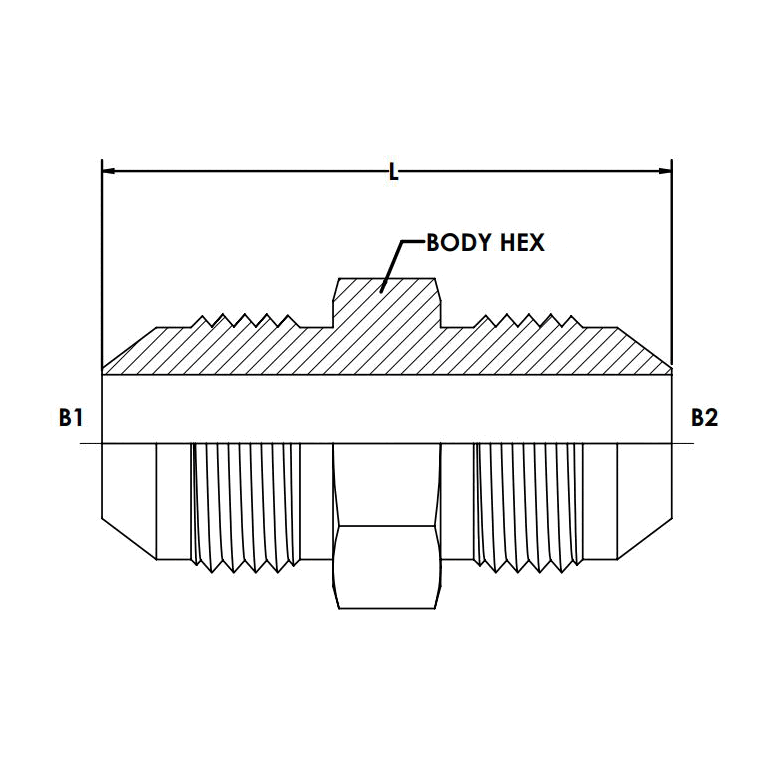

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX | 2.000 |
| OVERALL LENGTH 1 | 2.62 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.980 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
