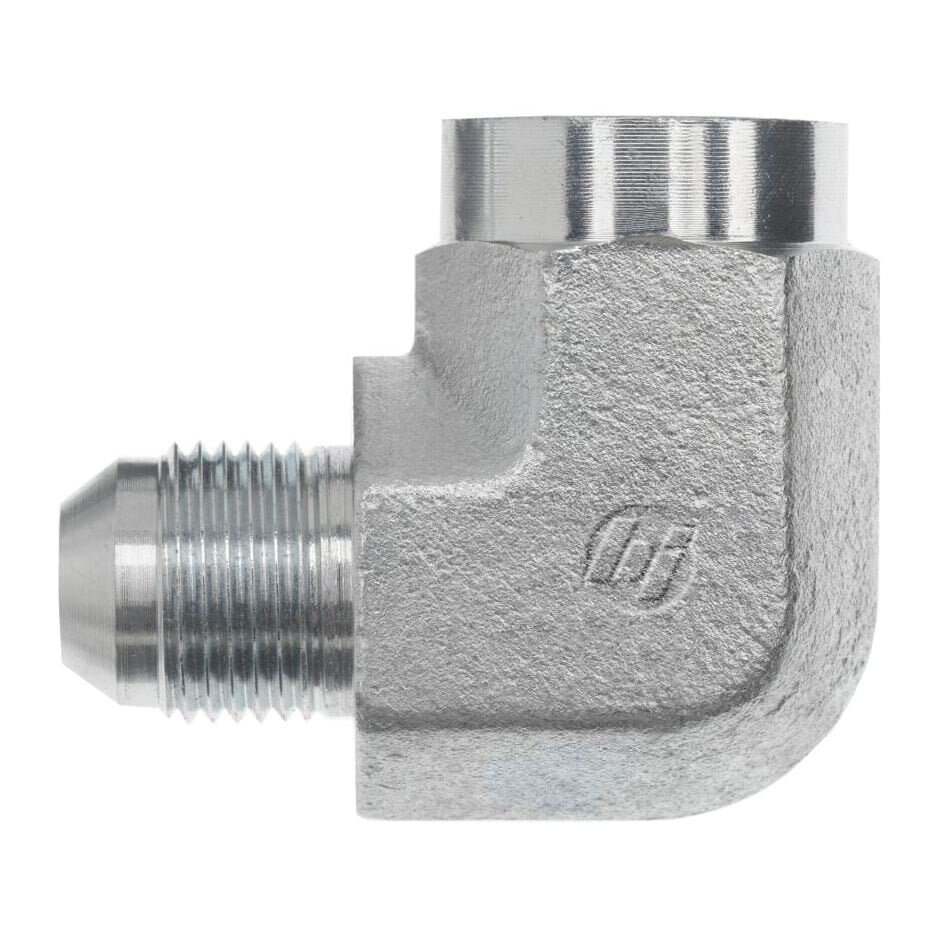

2502-24-24 (24MJ-24FP 90° Elbow Forged)
2502-24-24 (24MJ-24FP 90° Elbow Forged)
Regular price
$51.26 USD
Regular price
Sale price
$51.26 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD A2 TYPE | FEMALE NPTF |
| THREAD A2 SIZE | 1-1/2-11-1/2 |
| THREAD A2 SPECIFICATION | SAE J476 |
| BODY HEX | 2.562 |

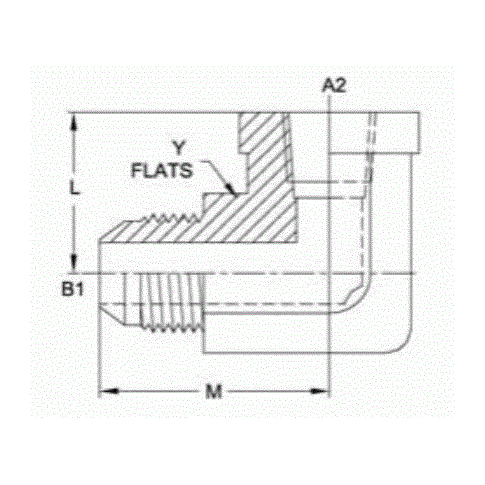

| CENTERLINE LENGTH M | 2.89 |
| CENTERLINE LENGTH L | 2.08 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 4.224 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
