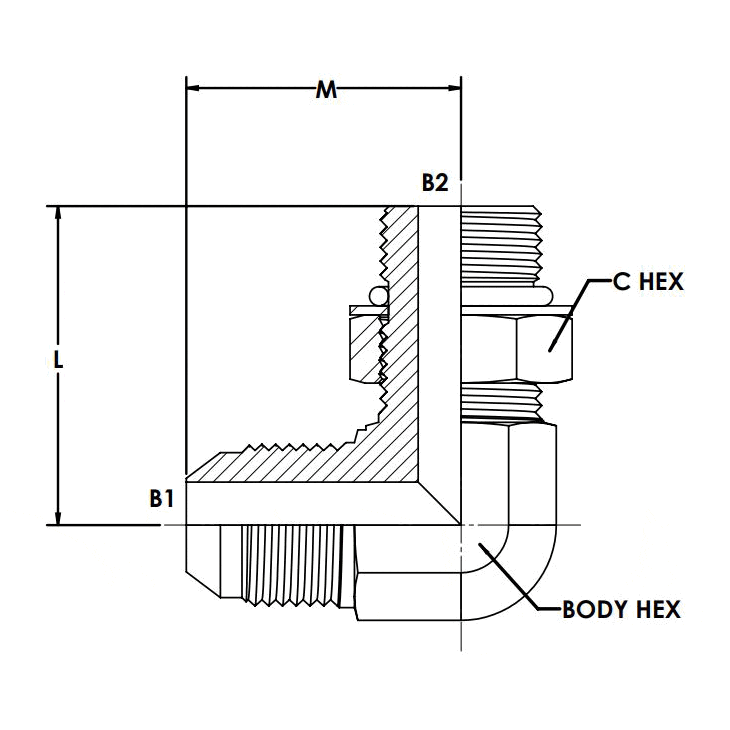

6801-24-24-NWO-FG (24MJ-24MAORB 90° Elbow Forged)
6801-24-24-NWO-FG (24MJ-24MAORB 90° Elbow Forged)
Regular price
$33.23 USD
Regular price
Sale price
$33.23 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.875 |
| C HEX 1 | 2.125 |
| CENTERLINE LENGTH M | 2.33 |
| CENTERLINE LENGTH L | 2.39 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 2.038 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
