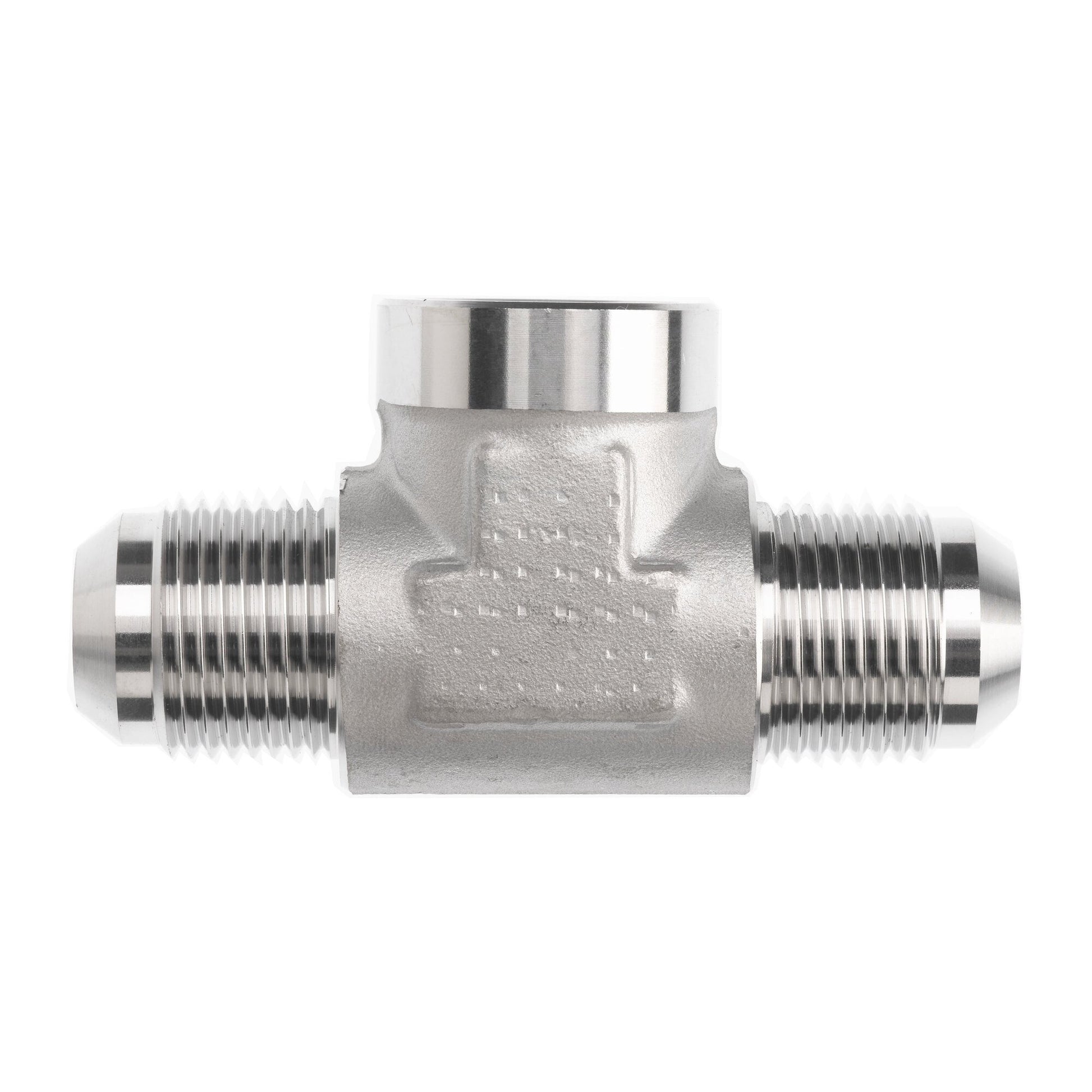

2602-24-24-24-SS (24MJ-24MJ-24FP Branch Tee)
2602-24-24-24-SS (24MJ-24MJ-24FP Branch Tee)
Regular price
$609.50 USD
Regular price
Sale price
$609.50 USD
Unit price
per
Couldn't load pickup availability

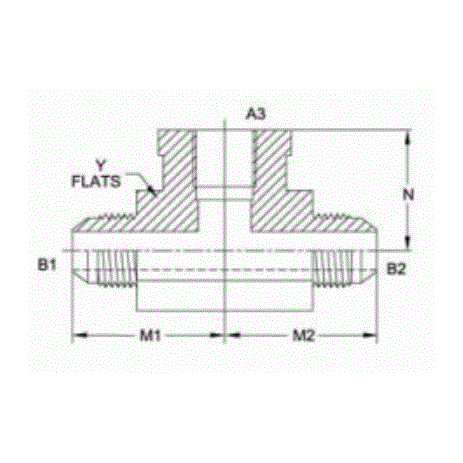

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | FEMALE NPTF |
| THREAD A3 SIZE | 1-1/2-11-1/2 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 2.562 |
| OVERALL LENGTH (M1,M2) | 5.78 |
| OVERALL HEIGHT (N + 1/2 HEX) | 3.361 |
| CENTERLINE LENGTH M1 | 2.89 |
| CENTERLINE LENGTH M2 | 2.89 |
| CENTERLINE LENGTH N | 2.08 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STAINLESS STEEL FORGING |
| WEIGHT (LBS) | 5.125 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
