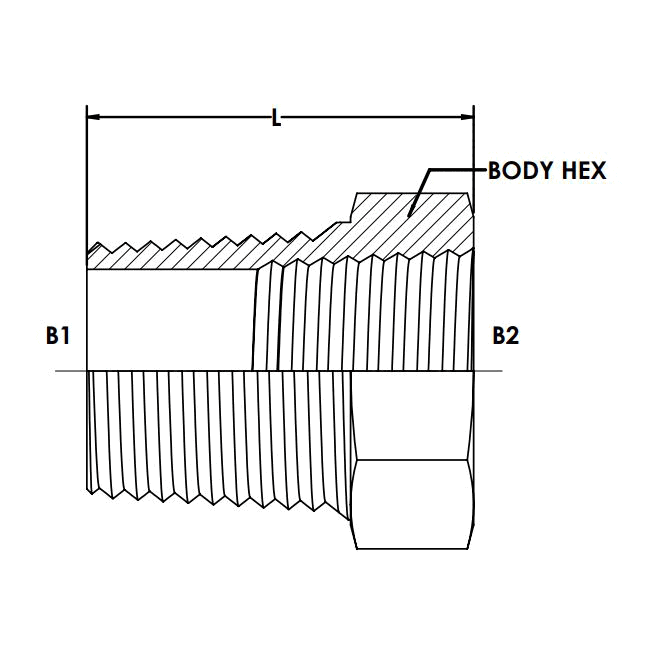

5406-24-20 (24MP-20FP Reducer Bushing)
5406-24-20 (24MP-20FP Reducer Bushing)
Regular price
$11.86 USD
Regular price
Sale price
$11.86 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL | 1.486 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 2.000 |
| OVERALL LENGTH L | 1.57 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.467 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,500 |
