5502-24-24-FG (24MP-24FP 90° Street Elbow Fo...)
5502-24-24-FG (24MP-24FP 90° Street Elbow Fo...)
Regular price
$50.16 USD
Regular price
Sale price
$50.16 USD
Unit price
per
Couldn't load pickup availability

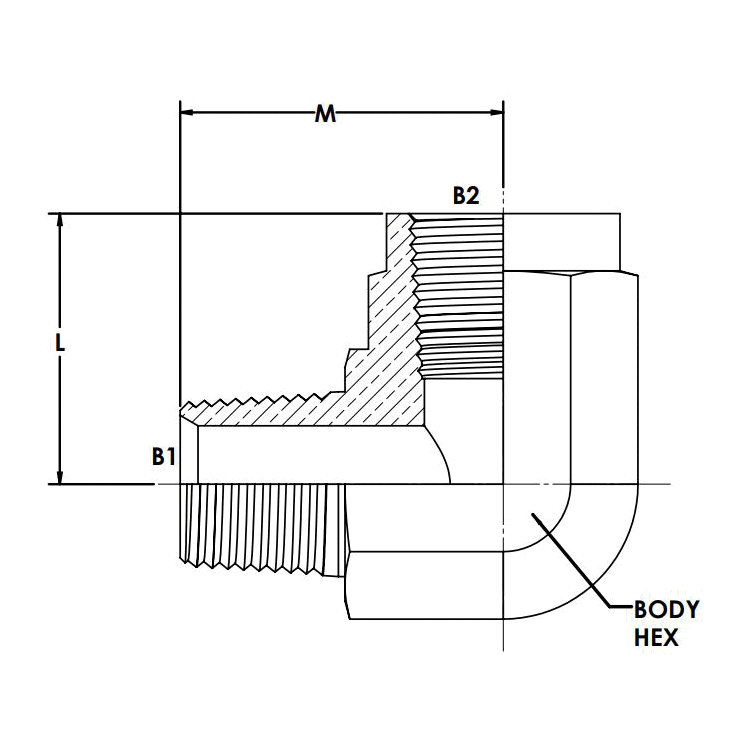

| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 2.562 |
| CENTERLINE LENGTH M | 2.64 |
| CENTERLINE LENGTH L | 2.08 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 3.944 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
