6801-32-32-NWO-FG (32MJ-32MAORB 90° Elbow Forged)
6801-32-32-NWO-FG (32MJ-32MAORB 90° Elbow Forged)
Regular price
$72.88 USD
Regular price
Sale price
$72.88 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |

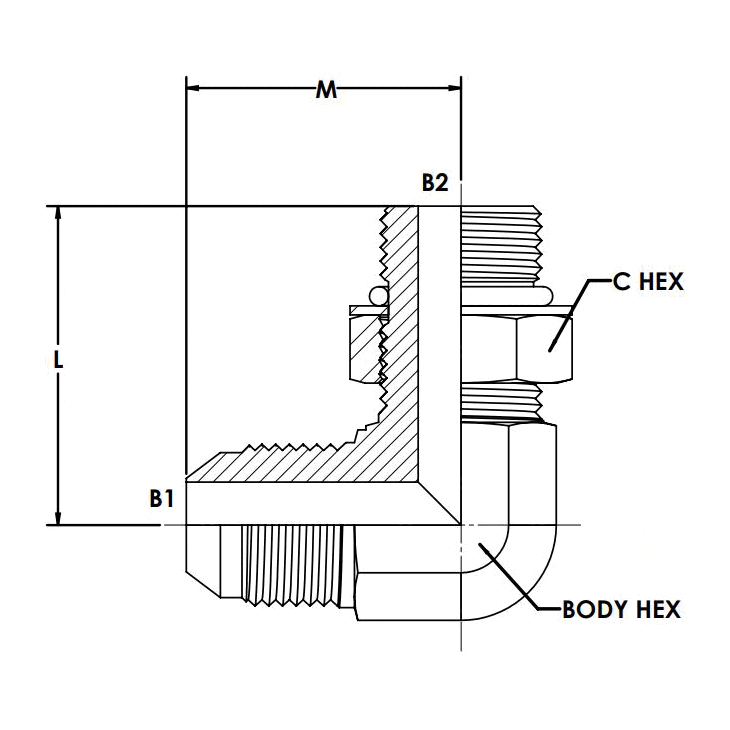

| BODY HEX | 2.500 |
| C HEX 1 | 2.750 |
| CENTERLINE LENGTH M | 3.060 |
| CENTERLINE LENGTH L | 2.890 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 4.400 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
