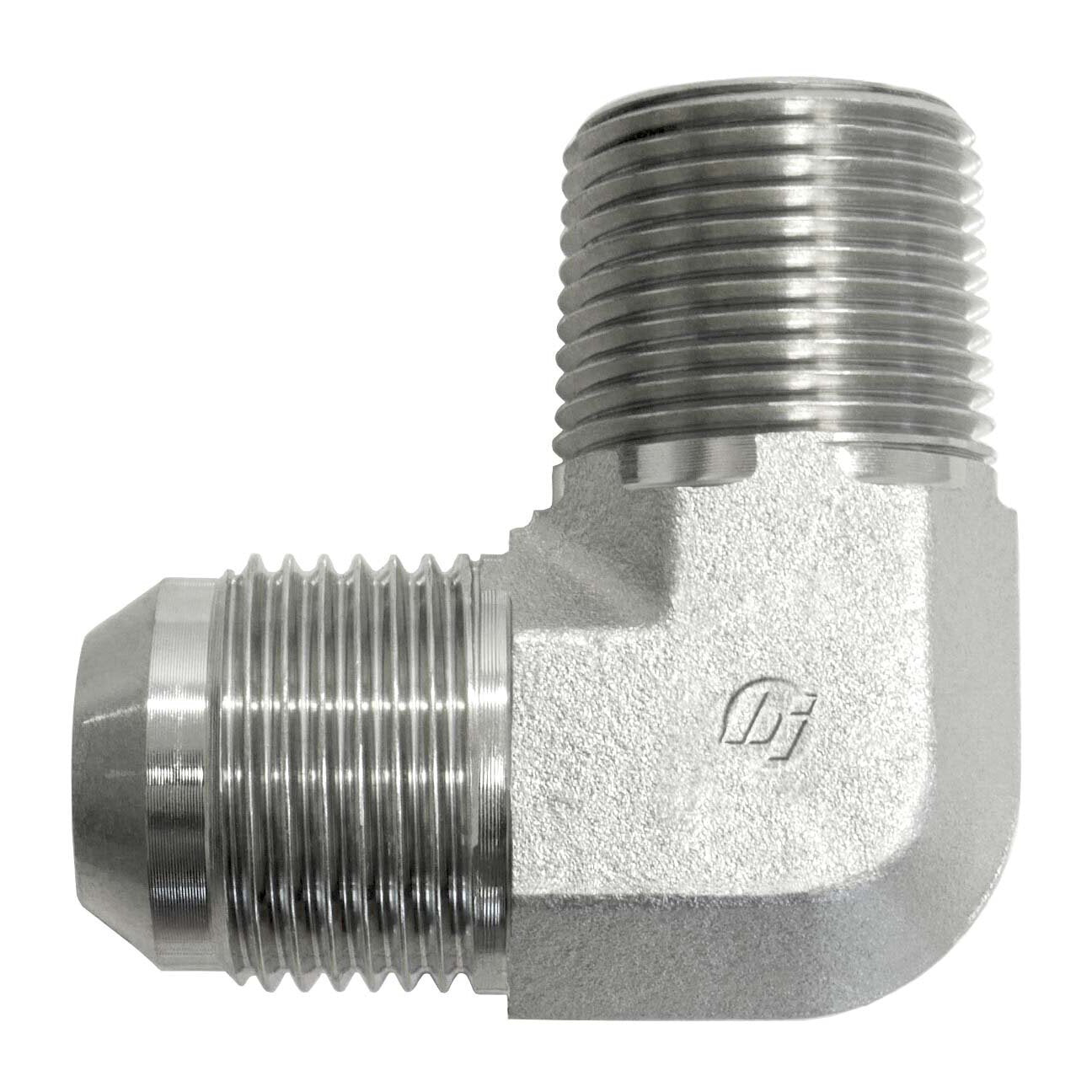

2501-32-32 (32MJ-32MP 90° Elbow Forged)
2501-32-32 (32MJ-32MP 90° Elbow Forged)
Regular price
$63.80 USD
Regular price
Sale price
$63.80 USD
Unit price
per
Couldn't load pickup availability

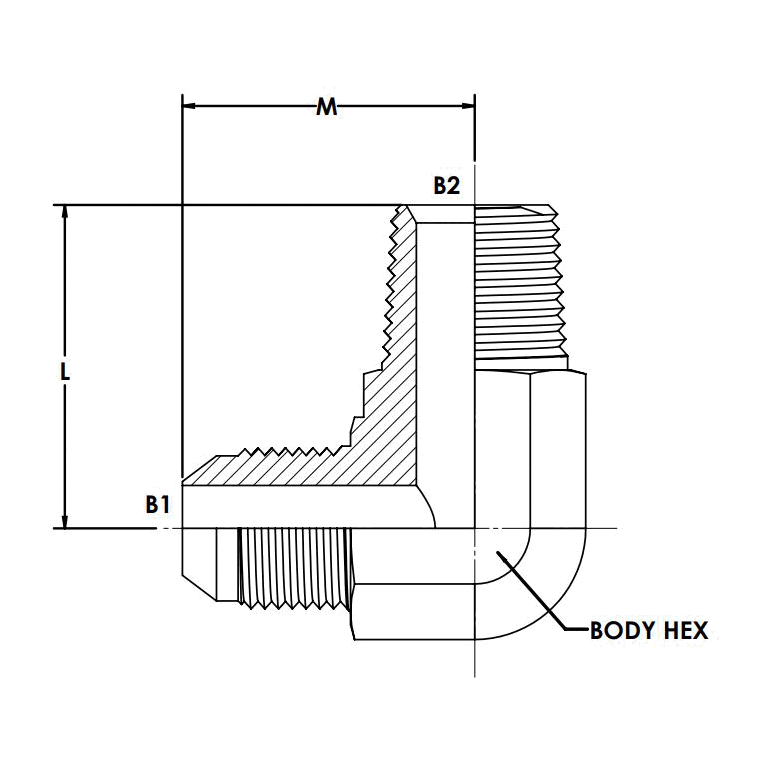

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 2-11-1/2 |
| THREAD B2 DRILL | 1.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 2.500 |
| CENTERLINE LENGTH M | 3.06 |
| CENTERLINE LENGTH L | 3.00 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 3.881 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,000 |
