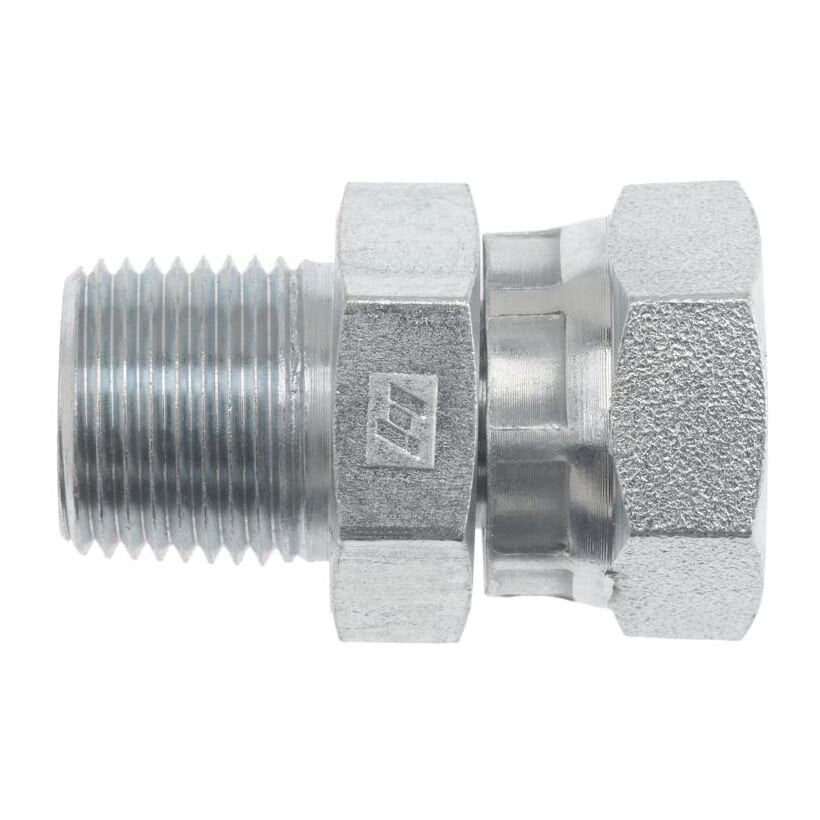

1404-32-32 (32MP-32FPS Straight)
1404-32-32 (32MP-32FPS Straight)
Regular price
$36.14 USD
Regular price
Sale price
$36.14 USD
Unit price
per
Couldn't load pickup availability
| THREAD A1 TYPE | MALE NPTF |
| THREAD A1 SIZE | 2-11-1/2 |
| THREAD A1 DRILL | 1.938 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 2-11-1/2 |
| THREAD A2 DRILL | 1.72 |
| THREAD A2 SPECIFICATION | SAE J514 |

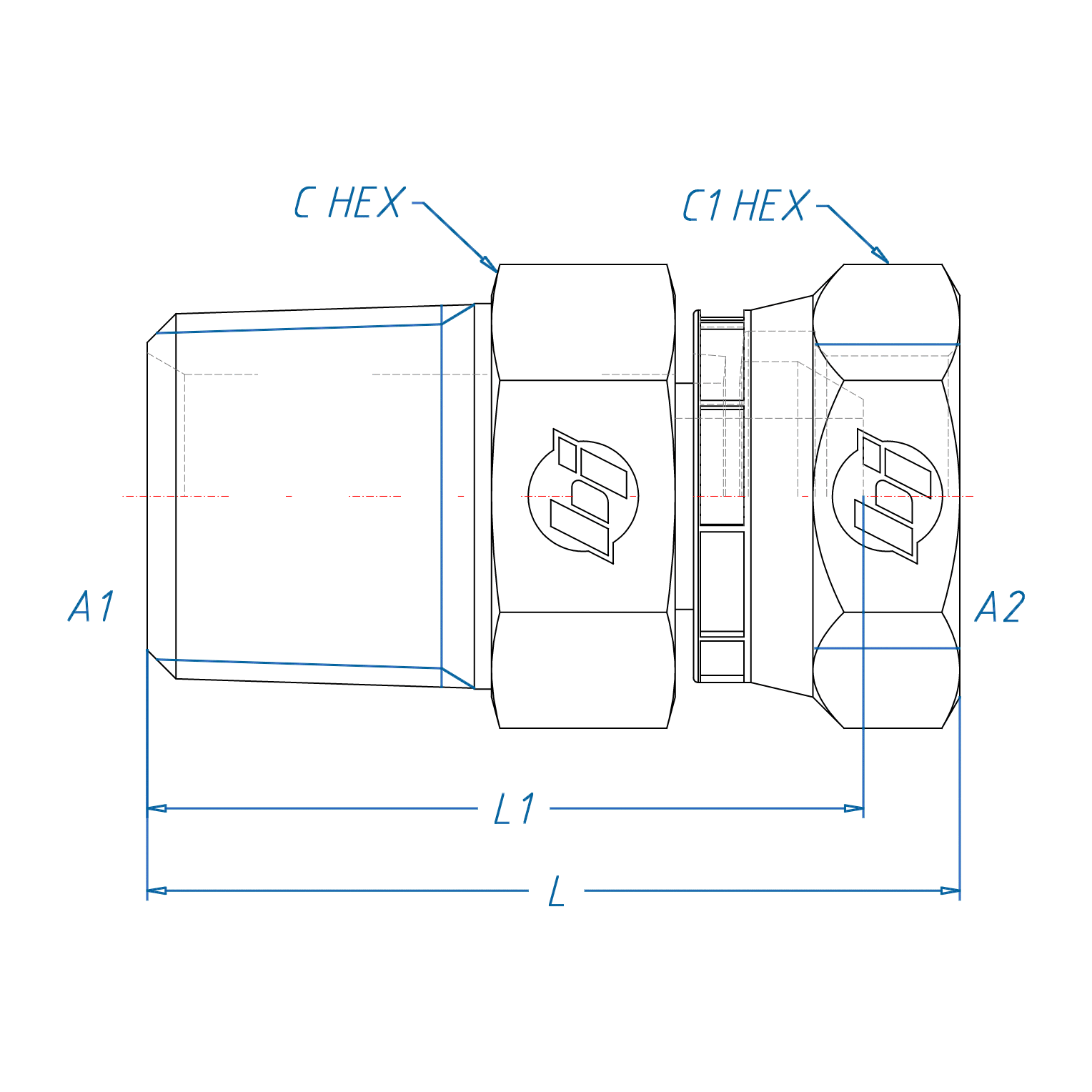

| BODY HEX | 2.625 |
| C HEX 1 | 2.625 |
| OVERALL LENGTH L | 2.82 |
| OVERALL LENGTH L1 | 2.40 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 1.880 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,100 |
