9059-04-04 (90*MJIC X MALE BSPP ADJ ELBOW)
9059-04-04 (90*MJIC X MALE BSPP ADJ ELBOW)
Regular price
$14.82 USD
Regular price
Sale price
$14.82 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/16 - 20 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPP | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1/4 - 19 | ISO 1179 /ISO 8434-6 /BS 5200 |

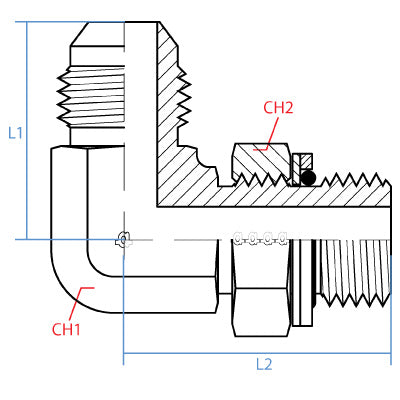

Dimensions
| L1 (Length) | L2 (Length) |
|---|---|
| 28mm | 33mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 14mm | 19mm |
