9059-12-12 (90*MJIC X MALE BSPP ADJ ELBOW3)
9059-12-12 (90*MJIC X MALE BSPP ADJ ELBOW3)
Regular price
$32.27 USD
Regular price
Sale price
$32.27 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 3/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 1-1/16 - 12 UN | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPP | Male | 3/4" |
| Thread | Relevant Standard(s) |
|---|---|
| G 3/4 - 14 | ISO 1179 /ISO 8434-6 /BS 5200 |

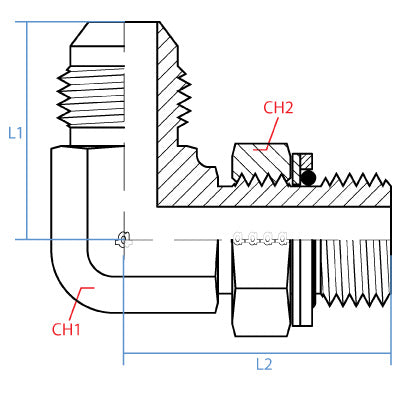

Dimensions
| L1 (Length) | L2 (Length) |
|---|---|
| 41mm | 49mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 26mm | 36mm |
