90* MJIC X MALE METRIC ADJ ELB
90* MJIC X MALE METRIC ADJ ELB
Regular price
$27.24 USD
Regular price
Sale price
$27.24 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 5/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/8 - 14 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| METRIC | Male | 20mm |
| Thread | Relevant Standard(s) |
|---|---|
| M20 X 1.5 | ISO 9974 / ISO 6149 / DIN 7631 |

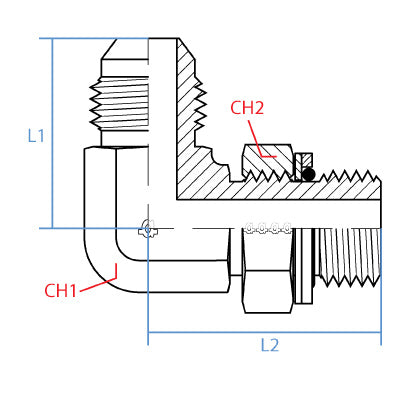

Dimensions
| L1 (Length) | L2 (Length) |
|---|---|
| 36mm | 40mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 22mm | 27mm |
