5390L-12 (DIN X F DIN SWIVEL RUN TEE3)
5390L-12 (DIN X F DIN SWIVEL RUN TEE3)
Regular price
$19.87 USD
Regular price
Sale price
$19.87 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L12 |
| Thread | Relevant Standard(s) |
|---|---|
| M18 X 1.5 | ISO 8434-1 / DIN 2353 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L12 |
| Thread | Relevant Standard(s) |
|---|---|
| M18 X 1.5 | ISO 8434-1 / DIN 2353 |
| Side 3 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Female | L12 |
| Thread | Relevant Standard(s) |
|---|---|
| M18 X 1.5 | ISO 8434-1 / DIN 2353 |

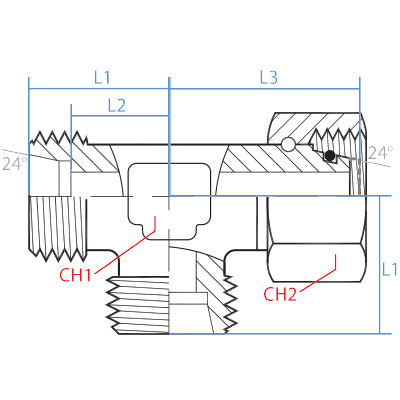

Dimensions
| L1 (Length) | L2 (Length) | L3 (Length) |
|---|---|---|
| 24mm | 17mm | 29.5mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 17mm | 22mm |
