9635S-18-L12-04 (MALE DIN (SEALED) X FEMALE NPT1)
9635S-18-L12-04 (MALE DIN (SEALED) X FEMALE NPT1)
Regular price
$8.90 USD
Regular price
Sale price
$8.90 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L12 |
| Thread | Relevant Standard(s) |
|---|---|
| M18 X 1.5 | ISO 8434-1 / DIN 2353 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| NPT | Female | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 1/4 - 18 NPTF | ANSI B1.20.3 |

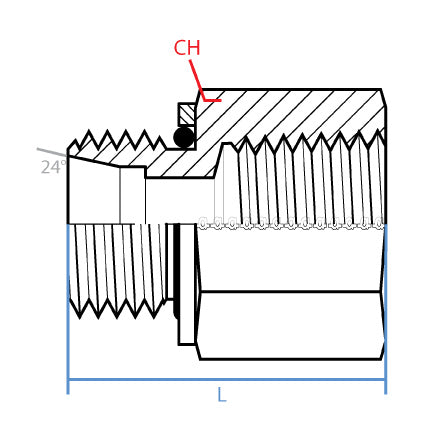

Dimensions
| L (Length) |
|---|
| 36.5mm |
| CH (Width) |
|---|
| 24mm |
