9022-08-S12-20 (MALE JIC-FEMALE METRIC SWIVEL7)
9022-08-S12-20 (MALE JIC-FEMALE METRIC SWIVEL7)
Regular price
$17.89 USD
Regular price
Sale price
$17.89 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/2" |
| Thread | Relevant Standard(s) |
|---|---|
| 3/4 - 16 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Female | S12 |
| Thread | Relevant Standard(s) |
|---|---|
| M20 X 1.5 | ISO 8434-1 / DIN 2353 |

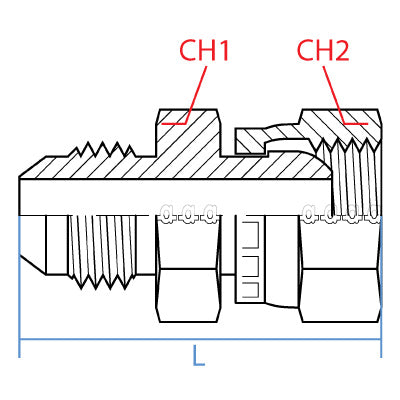

Dimensions
| L (Length) |
|---|
| 45mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 22mm | 27mm |
