9240-08-08 (MALE JIC X FEMALE BSPP SWIVEL2)
9240-08-08 (MALE JIC X FEMALE BSPP SWIVEL2)
Regular price
$10.83 USD
Regular price
Sale price
$10.83 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/2" |
| Thread | Relevant Standard(s) |
|---|---|
| 3/4 - 16 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPP | Female | 1/2" |
| Thread | Relevant Standard(s) |
|---|---|
| G 1/2 - 14 | ISO 1179 /ISO 8434-6 /BS 5200 |

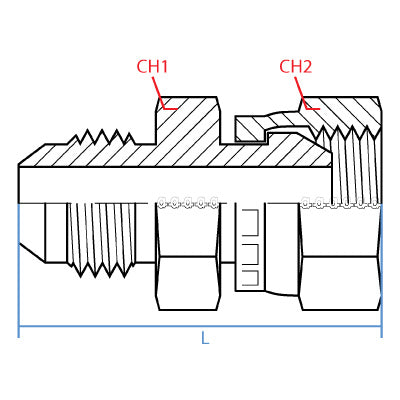

Dimensions
| L (Length) |
|---|
| 46.6mm |
| CH1 (Width) | CH2 (Width) |
|---|---|
| 27mm | 27mm |
