9011-06-04 (MALE JIC X MALE BSPT1)
9011-06-04 (MALE JIC X MALE BSPT1)
Regular price
$6.29 USD
Regular price
Sale price
$6.29 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 9/16 - 18 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPT | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| R 1/4 - 19 | ISO 7-1 / DIN EN 10226-1 |

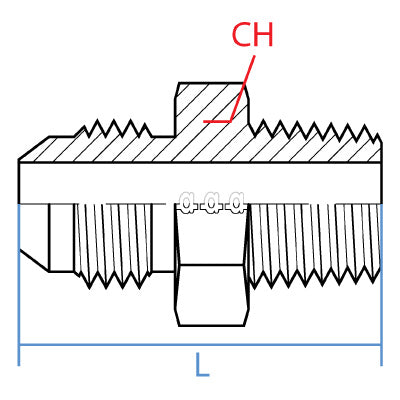

Dimensions
| L (Length) |
|---|
| 35.9mm |
| CH (Width) |
|---|
| 16mm |
