9220-06-06 (MALE JIC X SOLID FEMALE JIS)
9220-06-06 (MALE JIC X SOLID FEMALE JIS)
Regular price
$11.95 USD
Regular price
Sale price
$11.95 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 9/16 - 18 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| JIS | Female | 3/8" |
| Thread | Relevant Standard(s) |
|---|---|
| G 3/8 - 19 | JIS B 0202 |

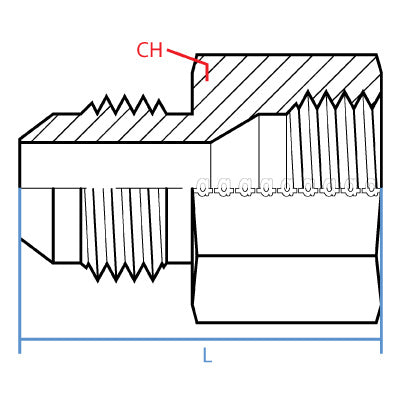

Dimensions
| L (Length) |
|---|
| 36.3mm |
| CH (Width) |
|---|
| 24mm |
