9605-20-L35-45 (MJIC X MALE DIN 2353 L1)
9605-20-L35-45 (MJIC X MALE DIN 2353 L1)
Regular price
$59.44 USD
Regular price
Sale price
$59.44 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1-1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 1-5/8 - 12 UN | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L35 |
| Thread | Relevant Standard(s) |
|---|---|
| M45 X 2.0 | ISO 8434-1 / DIN 2353 |

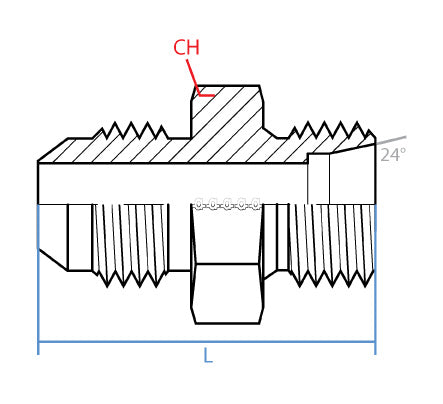

Dimensions
| L (Length) |
|---|
| 58.8mm |
| CH (Width) |
|---|
| 51mm |
