9606-10-S12-20 (MJIC X MALE DIN 2353 S)
9606-10-S12-20 (MJIC X MALE DIN 2353 S)
Regular price
$14.05 USD
Regular price
Sale price
$14.05 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 5/8" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/8 - 14 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | S12 |
| Thread | Relevant Standard(s) |
|---|---|
| M20 X 1.5 | ISO 8434-1 / DIN 2353 |

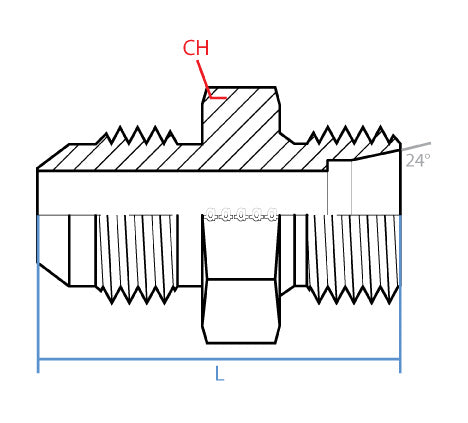

Dimensions
| L (Length) |
|---|
| 42.7mm |
| CH (Width) |
|---|
| 27mm |
