9605S-08-L15-22 (MJIC X MALE DIN 2353L (SEALED)
9605S-08-L15-22 (MJIC X MALE DIN 2353L (SEALED)
Regular price
$8.85 USD
Regular price
Sale price
$8.85 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/2" |
| Thread | Relevant Standard(s) |
|---|---|
| 3/4 - 16 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L15 |
| Thread | Relevant Standard(s) |
|---|---|
| M22 X 1.5 | ISO 8434-1 / DIN 2353 |

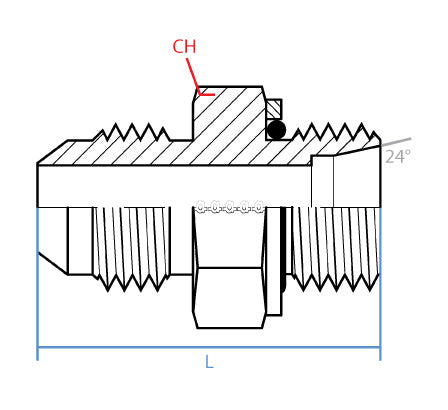

Dimensions
| L (Length) |
|---|
| 41.9mm |
| CH (Width) |
|---|
| 27mm |
