9606S-08-S10-18 (MJIC X MALE DIN 2353S (SEALED)
9606S-08-S10-18 (MJIC X MALE DIN 2353S (SEALED)
Regular price
$7.67 USD
Regular price
Sale price
$7.67 USD
Unit price
per
Specifications
Side 1 | ||
---|---|---|
Type | Gender | Size |
JIC | Male | 1/2" |
Thread | Relevant Standard(s) |
---|---|
3/4 - 16 UNF | SAE J514 / ISO 8434-2 |
Side 2 | ||
---|---|---|
Type | Gender | Size |
DIN TUBE | Male | S10 |
Thread | Relevant Standard(s) |
---|---|
M18 X 1.5 | ISO 8434-1 / DIN 2353 |

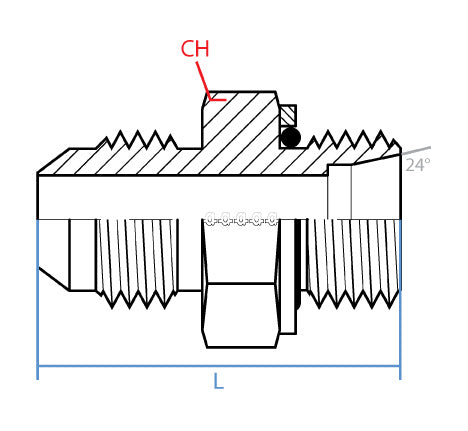

Dimensions
L (Length) |
---|
39.7mm |
CH (Width) |
---|
24mm |
